John Deere 9470R

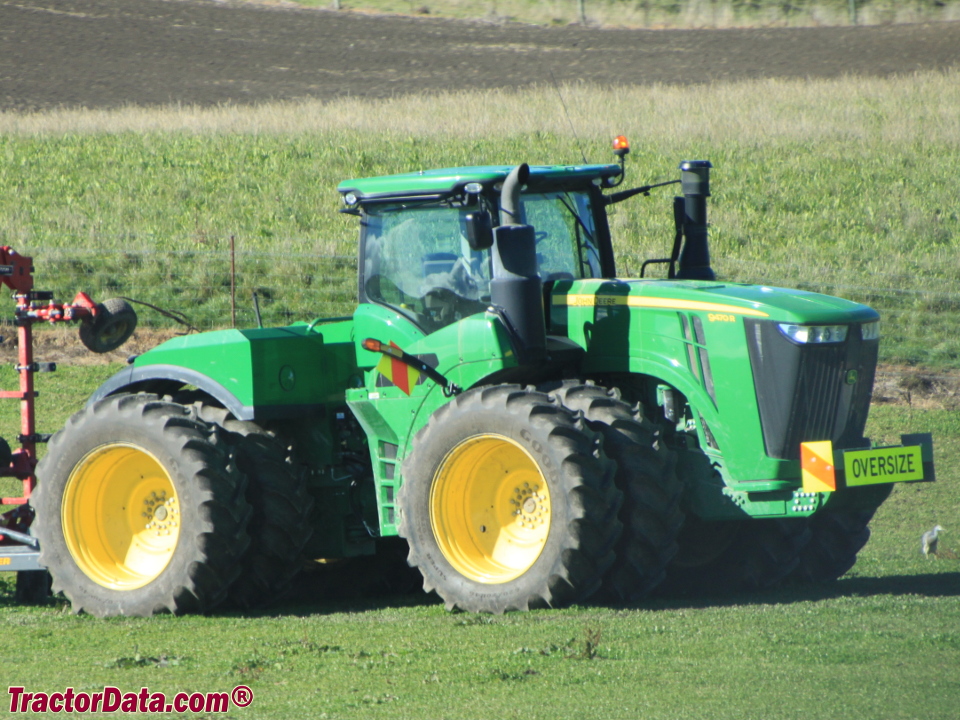

John Deere 9470R tractor photo
2015 - 2021
9R Series
Four-wheel Drive (4WD) tractor
Series map:
9420R
9470R
9520R
420.0hp
470.0hp
520.0hp
Production
ManufacturerJohn Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA
Variants
9470Rwheeled 4WD
9470RTcrawler
9470RXarticulated crawler
John Deere 9470R Engine
John Deere 13.5L 6-cyl diesel
Engine details ...
John Deere 9470R Power
Engine (gross)470 hp
350.5 kW
Engine (max)517 hp
385.5 kW
PTO (claimed)335 hp
249.8 kW
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic front and rear
Articulated power steering
Hydraulic wet disc brakes
Trailer brakeshydraulic OptOptional
Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink ready
Capacity
Fuel310 gal
1173.4 L
Exhaust fluid (DEF)22 gal
83.3 L
Hydraulic system73 gal
276.3 L
 75 gal*With hitch and PTO
283.9 L
Hydraulics
Typeclosed-center pressure/flow compensated
Capacity73 gal
276.3 L
 75 gal*With hitch and PTO
283.9 L
Pressure2900 psi
200.0 bar
Rear valves4 to 8
Pump flow58 gpm
219.5 lpm
 115 gpm*Optional, with second 57GPM pump
435.3 lpm
SCV flow35 gpm
132.5 lpm
 42 gpm*Flow at 19.1mm coupler with high-flow hydraulic option.
159.0 lpm
Tractor hitch
Rear TypeIV/IVN OptOptional
 IVN/III OptOptional
Controldraft sensing
Rear lift15000 lbs
6804 kg
 20000 lbs
9072 kg
DrawbarCat. 4
 Cat. 4 HD OptOptional
 Cat. 5 HD OptOptional
Power Take-off (PTO)
Rear PTOindependent OptOptional
Clutchelectro-hydraulic
Rear PTO Type1000 (1.75)
Dimensions & Tires
Wheelbase149.8 inches
380 cm
Weight42310 lbs
19191 kg
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps200
 240 OptOptional
Charging volts12
Batteries3
Battery CCA925
Battery volts12
