John Deere 9470R Transmission



John Deere 9470R tractor photo
2015 - 2021
9R Series
Four-wheel Drive (4WD) tractor
Series map:
9420R
9470R
9520R
420.0hp
470.0hp
520.0hp
Transmission
Transmissione18 PowerShift
Typefull power shift
Gears18 forward and 6 reverse
Oil capacity291.6 qts
276.0 L
 300.1 qts*With hitch and PTO
284.0 L

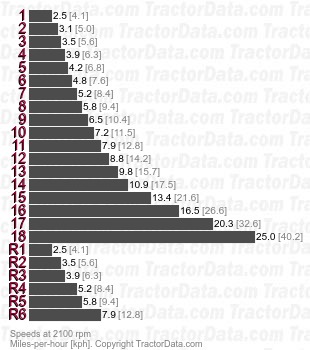

Speeds
With group 47 (710/70R38) tires.
9470R e18 PowerShift full power shift speeds
