Tractors > CaseIH > Magnum 240

CaseIH Magnum 240 Tests



CaseIH Magnum 240 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 220
Magnum 240
220.0hp
240.0hp
OCED Tractor Test 2181

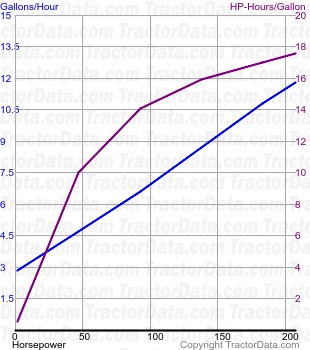

Magnum 240 fuel use from test 981
OCED Tractor Test 2181
Diesel CVT 4WD
May 14 - June 8, 2015
Link: OCED Tractor Test 2181 file
PTO performance
Max power224.92 hp
167.7 kW
Fuel use12.1 gal/hour
45.8 l/hour
Power at rated engine speed207.13 hp
154.5 kW
Fuel use11.8 gal/hour
44.7 l/hour
Power at rated PTO speed223.10 hp
166.4 kW
Fuel use12.1 gal/hour
45.8 l/hour
Drawbar performance
Max power186.70 hp
139.2 kW
Fuel use11.8 gal/hour
44.7 l/hour
Pull at 9 KPH
Max pull22274 lbs
10103 kg
Pull at 5 KPH
