CaseIH Magnum 240

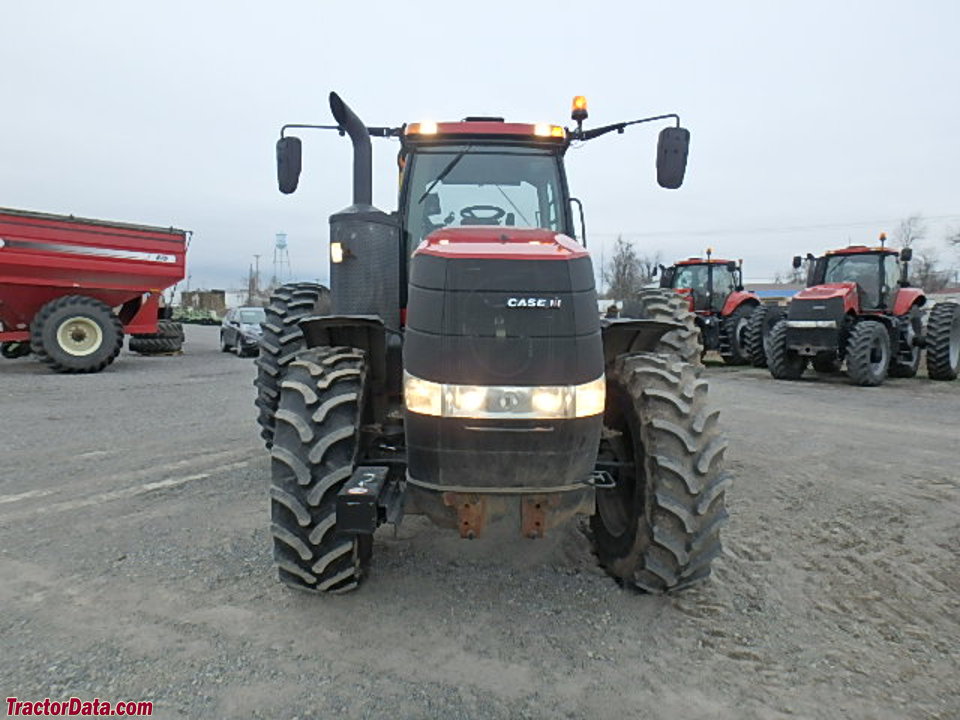

CaseIH Magnum 240 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 220
Magnum 240
220.0hp
240.0hp
Production
ManufacturerCaseIH (a part of CNH)
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price$225,400 (2014 CVT )
$240,377 (2017 CVT )
CaseIH Magnum 240 Engine
FPT 6.7L 6-cyl diesel
Fuel tank160 gal
605.6 L
Exhaust fluid (DEF)17.5 gal
66.2 L
Engine details ...
CaseIH Magnum 240 Transmission
continuously variable transmission (CVT)
Transmission details ...
CaseIH Magnum 240 Power
Engine (gross)240 hp
179.0 kW
Engine (max)270 hp
201.3 kW
PTO (claimed)205 hp
152.9 kW
Drawbar (tested)186.70 hp
139.2 kW
PTO (tested)224.92 hp
167.7 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesinboard planetary
Power steering
Hydraulic wet disc brakes
Magnum cab standard with air-conditioning. Optional cab suspension.
Hydraulics
Typepressure flow compensating
Rear valves3 to 5
Pump flow43 gpm
162.8 lpm
Tractor hitch
Rear TypeIII/IIIN
Controlelectronic lower link draft sensing
Rear lift (at 24"/610mm)14100 lbs
6395 kg
DrawbarCat. 3
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase118 inches
299 cm
Weight22305 lbs
10117 kg
Front tire380/85R34
Rear tire480/80R46
Full dimensions and tires ...
Magnum 240 Serial Number Location
CaseIH Magnum 240 serial number location
Serial number plate on the front right of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References
Magnum 240 references literature
Magnum 180-380 Tractors published in 2014, by CaseIH
Magnum Series Tractors published in 2019, by CaseIH
