Tractors > CaseIH > Magnum 220

CaseIH Magnum 220 Tests



CaseIH Magnum 220 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 200
Magnum 220
Magnum 240
200.0hp
220.0hp
240.0hp
OCED Tractor Test 2120

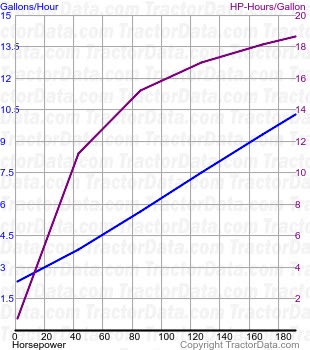

Magnum 220 fuel use from test 980
OCED Tractor Test 2120
Diesel 19-speed 4WD
May 18 - June 8, 2015
Link: OCED Tractor Test 2120 file
PTO performance
Max power209.36 hp
156.1 kW
Fuel use10.6 gal/hour
40.1 l/hour
Power at rated engine speed191.22 hp
142.6 kW
Fuel use10.3 gal/hour
39.0 l/hour
Power at rated PTO speed209.04 hp
155.9 kW
Fuel use10.7 gal/hour
40.5 l/hour
Drawbar performance
Max power168.13 hp
125.4 kW
Fuel use10.3 gal/hour
39.0 l/hour
Gear 9 used for power test.
Max pull19983 lbs
9064 kg
Gear 6 used for pull test.
