Tractors > CaseIH > Magnum 225

CaseIH Magnum 225 Tests



CaseIH Magnum 225 tractor photo
2009 - 2013
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 210
Magnum 225
215.0hp
231.0hp
OCED Tractor Test 1995

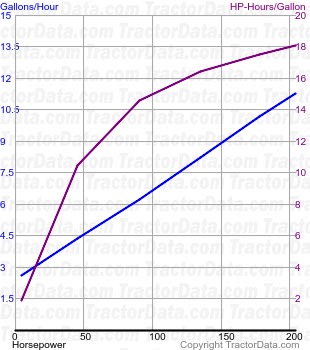

Magnum 225 fuel use from test 770
OCED Tractor Test 1995
Diesel CVT 4WD
June 1 - 13, 2011
Link: OCED Tractor Test 1995 file
PTO performance
Max power222.90 hp
166.2 kW
Fuel use11.6 gal/hour
43.9 l/hour
Power at rated engine speed203.80 hp
152.0 kW
Fuel use11.3 gal/hour
42.8 l/hour
Power at rated PTO speed217.95 hp
162.5 kW
Fuel use11.6 gal/hour
43.9 l/hour
Drawbar performance
Max power168.96 hp
126.0 kW
Fuel use11.4 gal/hour
43.1 l/hour
Pull at 9.0 KPH
Max pull19179 lbs
8699 kg
Pull at 5.1 KPH
