Tractors > CaseIH > Magnum 200

CaseIH Magnum 200 Tests



CaseIH Magnum 200 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 180
Magnum 200
Magnum 220
180.0hp
200.0hp
220.0hp
OCED Tractor Test 2119

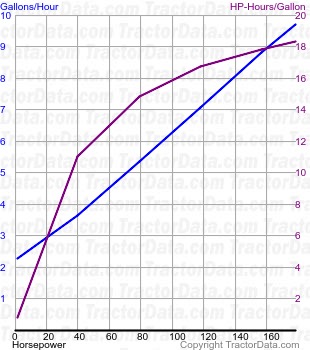

Magnum 200 fuel use from test 979
OCED Tractor Test 2119
Diesel 19-speed 4WD
May 20, 215 - June 8, 2015
Link: OCED Tractor Test 2119 file
PTO performance
Max power192.65 hp
143.7 kW
Fuel use9.7 gal/hour
36.7 l/hour
Power at rated engine speed178.15 hp
132.8 kW
Fuel use9.7 gal/hour
36.7 l/hour
Power at rated PTO speed189.60 hp
141.4 kW
Fuel use9.8 gal/hour
37.1 l/hour
Drawbar performance
Max power155.25 hp
115.8 kW
Fuel use9.7 gal/hour
36.7 l/hour
Gear 9 used for power test.
Max pull18674 lbs
8470 kg
Gear 6 used for pull test.
