Tractors > CaseIH > Magnum 210

CaseIH Magnum 210 Tests



CaseIH Magnum 210 tractor photo
2009 - 2013
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 190
Magnum 210
Magnum 225
200.0hp
215.0hp
231.0hp
OCED Tractor Test 1994

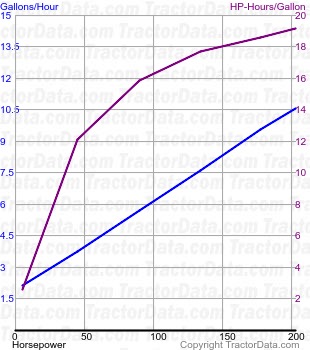

Magnum 210 fuel use from test 769
OCED Tractor Test 1994
Diesel 19-speed 4WD
July 8 - 12, 2011
Link: OCED Tractor Test 1994 file
PTO performance
Max power214.60 hp
160.0 kW
Fuel use10.7 gal/hour
40.5 l/hour
Power at rated engine speed202.32 hp
150.9 kW
Fuel use10.6 gal/hour
40.1 l/hour
Power at rated PTO speed214.33 hp
159.8 kW
Fuel use10.8 gal/hour
40.9 l/hour
Drawbar performance
Max power174.51 hp
130.1 kW
Fuel use10.7 gal/hour
40.5 l/hour
Gear 9 used for power test.
Max pull18005 lbs
8167 kg
Gear 7 used for pull test.
