Tractors > CaseIH > Magnum 190

CaseIH Magnum 190 Tests



CaseIH Magnum 190 tractor photo
2009 - 2013
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 180
Magnum 190
Magnum 210
185.0hp
200.0hp
215.0hp
OCED Tractor Test 1993

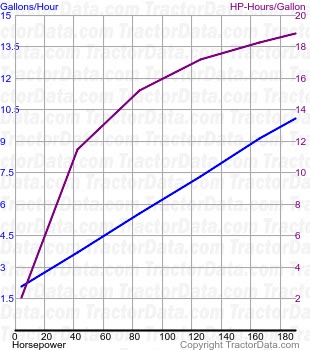

Magnum 190 fuel use from test 768
OCED Tractor Test 1993
Diesel 19-speed 4WD
May 25 - June 13, 2011
Link: OCED Tractor Test 1993 file
PTO performance
Max power204.49 hp
152.5 kW
Fuel use10.4 gal/hour
39.4 l/hour
Power at rated engine speed189.90 hp
141.6 kW
Fuel use10.1 gal/hour
38.2 l/hour
Power at rated PTO speed204.49 hp
152.5 kW
Fuel use10.4 gal/hour
39.4 l/hour
Drawbar performance
Max power165.67 hp
123.5 kW
Fuel use10.1 gal/hour
38.2 l/hour
Gear 9 used for power test.
Max pull18066 lbs
8194 kg
Gear 7 used for pull test.
