CaseIH Magnum 180 Tests
|
|
| OCED Tractor Test 2118 | |||
| |||
| OCED Tractor Test 2118 | |
| Diesel 19-speed 4WD 5/13/2015 Link: OCED Tractor Test 2118 file | |
| PTO performance | |
| Max power | 178.60 hp 133.2 kW |

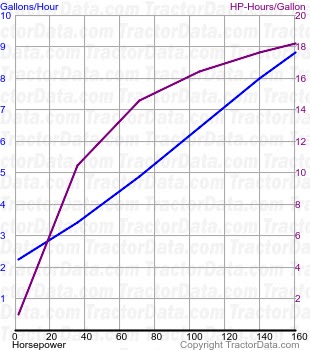

| Fuel use | 9.1 gal/hour 34.4 l/hour |
| Power at rated engine speed | 160.27 hp 119.5 kW |
| Fuel use | 8.8 gal/hour 33.3 l/hour |
| Power at rated PTO speed | 175.16 hp 130.6 kW |
| Fuel use | 9.1 gal/hour 34.4 l/hour |
| Drawbar performance | |
| Max power | 139.56 hp 104.1 kW |
| Fuel use | 8.8 gal/hour 33.3 l/hour |
| Gear 9 used for power test. | |
| Max pull | 18496 lbs 8389 kg |
| Gear 6 used for pull test. | |
