Tractors > CaseIH > Magnum 180

CaseIH Magnum 180 Tests



CaseIH Magnum 180 tractor photo
2009 - 2013
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 180
Magnum 190
185.0hp
200.0hp
OCED Tractor Test 1992

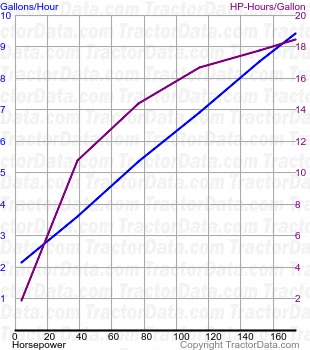

Magnum 180 fuel use from test 767
OCED Tractor Test 1992
Diesel 19-speed 4WD
May 24 - June 13, 2011
Link: OCED Tractor Test 1992 file
PTO performance
Max power187.92 hp
140.1 kW
Fuel use9.5 gal/hour
36.0 l/hour
Power at rated engine speed173.54 hp
129.4 kW
Fuel use9.4 gal/hour
35.6 l/hour
Power at rated PTO speed185.77 hp
138.5 kW
Fuel use9.6 gal/hour
36.3 l/hour
Drawbar performance
Max power151.22 hp
112.8 kW
Fuel use9.5 gal/hour
36.0 l/hour
Gear 9 used for power test.
Max pull17960 lbs
8146 kg
Gear 6 used for pull test.
