John Deere 2032R
| | 2013 - 2025 |
|
| 2R Series | | Compact Utility tractor |
|
Series map:
2025R
2032R
25.0hp
32.0hp
| Production |
| Manufacturer | John Deere
|
| Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| Original price | $18,595 (2013 )
|
| $19,339 (2014 )
|
| John Deere 2032R Power |
| Engine (gross) | 31.7 hp
23.6 kW
|
| Engine | 32 hp
23.9 kW
|
| PTO (claimed) | 23.5 hp
17.5 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | spur gear
|
| Differential lock | standard
|
| Power steering |
| Wet disc brakes |
| Two-post folding ROPS. |
| Capacity |
| Fuel | 7.1 gal
26.9 L
|
| Hydraulic system | 3.9 gal
14.8 L
|
| Front axle | 0.9 qts
0.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 3.9 gal
14.8 L
|
| Pressure | 2421 psi
166.9 bar
|
| Mid valves | 2
|
| Pump flow | 5.0 gpm
18.9 lpm
|
| Total flow | 10.5 gpm
39.7 lpm
|
| Steering flow | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 1433 lbs
650 kg
|
| Rear lift (at 24"/610mm) | 1250 lbs
567 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | wet disc
|
| Rear PTO Type | 540
|
| Mid PTO | independent
|
| Mid PTO Type | 2100
|

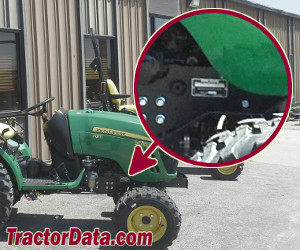

| 2032R Serial Number Location |
 |
| Right side of tractor frame, above and behind the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Charging volts | 12
|
| Battery CCA | 500
|
| Battery volts | 12
|
| References |
 |
| 2R Series published in 2013, by John Deere |
| 2R Series published in 2015, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on May 24, 2023 |
