John Deere 2032R Engine


John Deere 2032R tractor photo
2013 - 2024
Model year
2R Series
Compact Utility tractor
Series map:
2025R
2032R
25.0hp
32.0hp
Engine Detail
Yanmar 3TNV88
diesel
3-cylinder
liquid-cooled
Displacement100 ci
1.6 L
Bore/Stroke3.465x3.543 inches
88 x 90 mm
Power32 hp
23.9 kW
Rated Power (EC 97/98)31.7 hp
23.6 kW
Fuel systemdirect injection
Air cleanerdual stage dry
Compression19.1:1
Rated RPM2500
Operating RPM1000-2650
Starterelectric
Starter volts12
Coolant capacity4.2 qts
4.0 L
Engine Oil

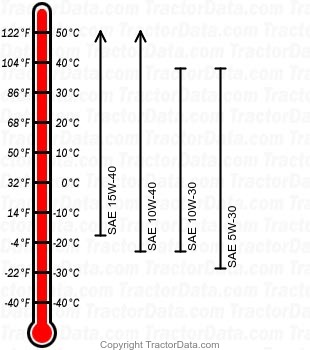

2032R diesel engine oil chart
Oil capacity3.6 qts
3.4 L
Oil change200 h
