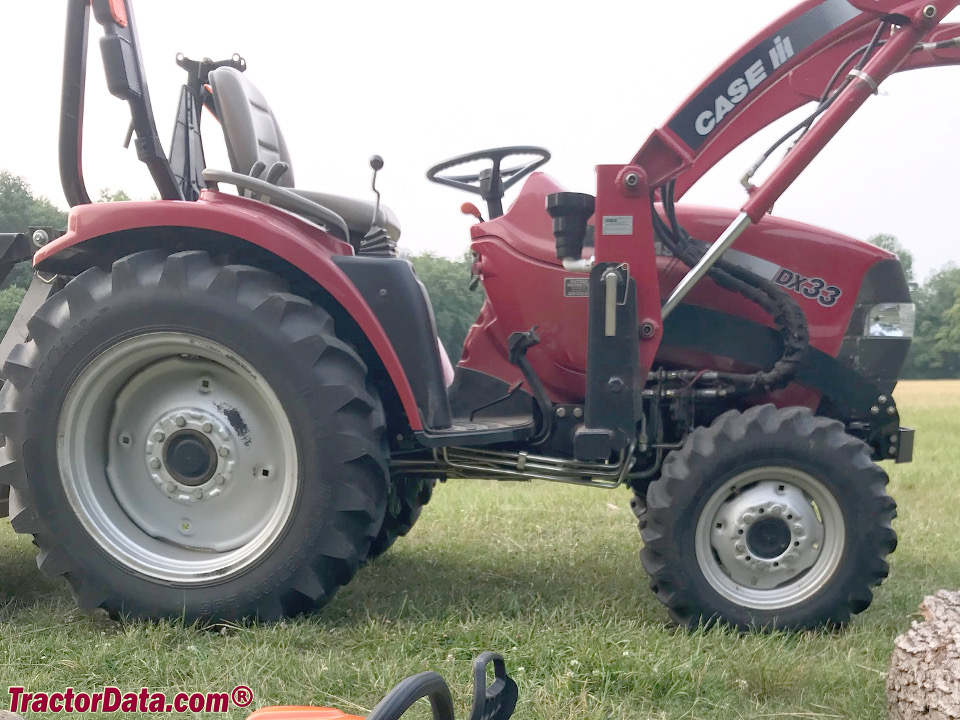

CaseIH Farmall DX33
|
|
| Production | |
| Manufacturer | CaseIH (a part of CNH) |
| Compact Utility tractor | |
| Variants | |
| TC33DA | similar New Holland model |
| CaseIH Farmall DX33 Engine | |
| Shibaura 1.5L 3-cyl diesel | |
| Fuel tank | 7.3 gal 27.6 L |
 Engine details ... | |
| CaseIH Farmall DX33 Transmissions | |
| hydrostatic | |
| 9-speed gear | |
 Transmission details ... |
| CaseIH Farmall DX33 Power | |
| Engine (gross) | 33 hp 24.6 kW |
| Hydro PTO (claimed) | 26.9 hp 20.1 kW |
| Gear PTO (claimed) | 28.6 hp 21.3 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. |
| Hydraulics | |
| Type | open center |
| Pump flow | 7.6 gpm 28.8 lpm |
| Total flow | 12.7 gpm 48.1 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at 24"/610mm) | 1635 lbs 741 kg |
| Power Take-off (PTO) | |
| Gear Rear PTO | transmision |
| Hydro Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Gear Mid PTO | transmision |
| Hydro Mid PTO | independent |
| Mid PTO Type | 2000 (1.0) |
| Dimensions & Tires | |
| Wheelbase | 63 inches 160 cm |
| Weight | 2440 to 2474 pounds |
 Full dimensions and tires ... | |
| CaseIH Farmall DX33 attachments | |
| 60" mid-mount mower deck | |
| 72" mid-mount mower deck | |
| snowblower | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| DX Series Farmall Tractors published in 2004, by CaseIH | |
| DX Series Farmall Tractors published in 2003, by CaseIH | |
| DX Series Farmall Tractors and Integrated Implements published in 2004, by CaseIH |
