New Holland TC33DA
2003 - 2005 Boomer TC-A Series Compact Utility tractor
Production Manufacturer New Holland (a part of CNH)
Compact Utility tractor
New Holland TC33DA Power Engine (gross) 33 hp24.6 kW
Gear PTO (claimed) 28.6 hp21.3 kW
Hydro PTO (claimed) 26.9 hp20.1 kW
Mechanical Four-wheel drive Power steering Two-post folding ROPS.
Hydraulics Type open center
Pump flow 7.6 gpm28.8 lpm
Steering flow 5.1 gpm19.3 lpm
Tractor hitch Rear Type I
Rear lift (at 24"/610mm) 1635 lbs741 kg
Power Take-off (PTO) Gear Rear PTO transmision
Hydro Rear PTO independent
Rear PTO Type 540 (1.375)
Gear Mid PTO transmision
Hydro Mid PTO independent
Mid PTO Type 2000 (1.0)

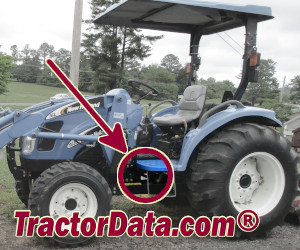

TC33DA Serial Number Location Serial number plate on the left side of the transmission housing.
Electrical Ground negative
Battery volts 12
References BOOMER Tractor Implements, Attachments and Accessories published in 2005, by New Holland The New Boomer Tractor Family published in 2003, by New Holland Boomer 18 to 55 HP Tractors published in 2004, by New Holland BOOMER 18 To 55 HP Tractors published in 2005, by New Holland
