Iseki TS2810
|
|
| Production | |
| Manufacturer | Iseki |
| Compact Utility tractor | |
| Variants | |
| TS2810F | 4WD |
| Iseki TS2810 Engine | |
| Isuzu 1.5L 3-cyl diesel | |
| Fuel tank | 7.9 gal 29.9 L |
 Engine details ... | |
| Iseki TS2810 Transmission | |
| 9-speed gear | |
 Transmission details ... |
| Iseki TS2810 Power | |
| Engine | 28 hp 20.9 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Open operator station. |

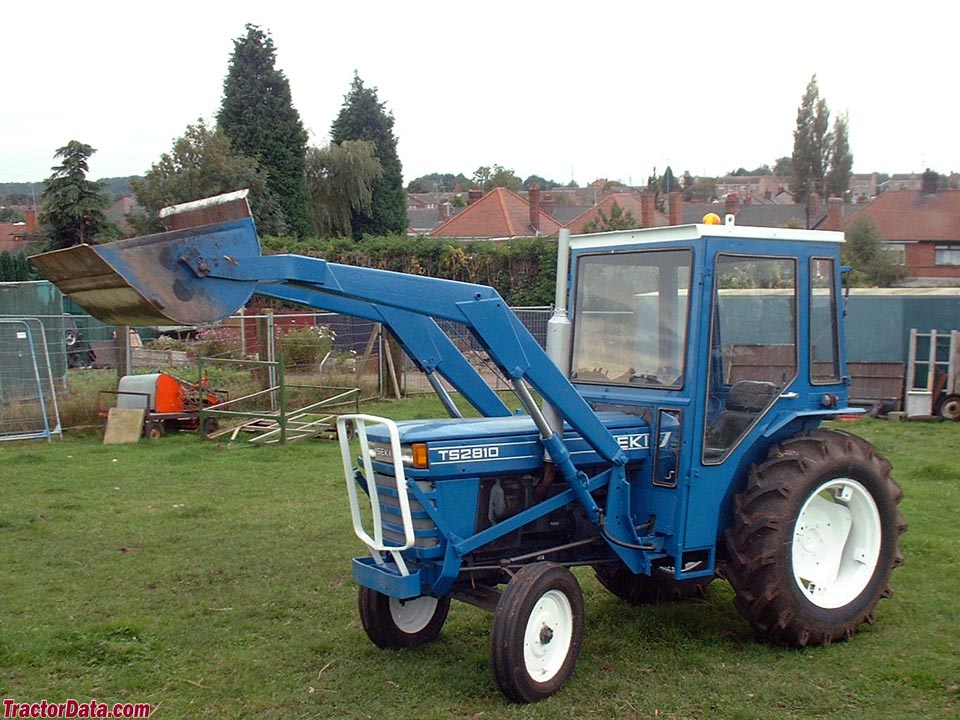

| Photos | |
 | |
 Iseki TS2810 photos... | |
| Tractor hitch | |
| Rear Type | I |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 630@2600 |
| 773@2600 | |
| 990@2600 | |
| 1547@2600 | |
| Dimensions & Tires | |
| 2WD Wheelbase | 68.9 inches 175 cm |
| 4WD Wheelbase | 70.1 inches 178 cm |
| Weight | 2690 to 2976 pounds |
| Front tire | 5.00-15 |
| 2WD Rear tire | 12.4/11-24 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |

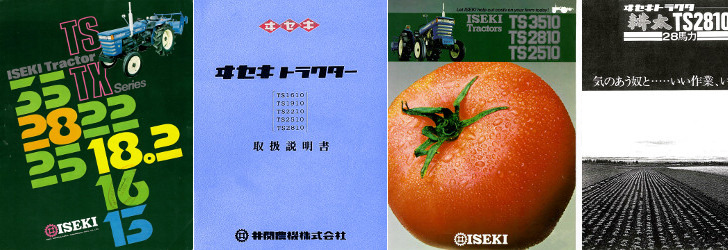

| References | |
 | |
| TS & TX Series published in 1975, by Iseki | |
| TS1610-TS2810 | |
| TS3510-TS2810-TS2510 published in 1976, by Iseki | |
| TS2810 published by Iseki |
