Iseki TS3110

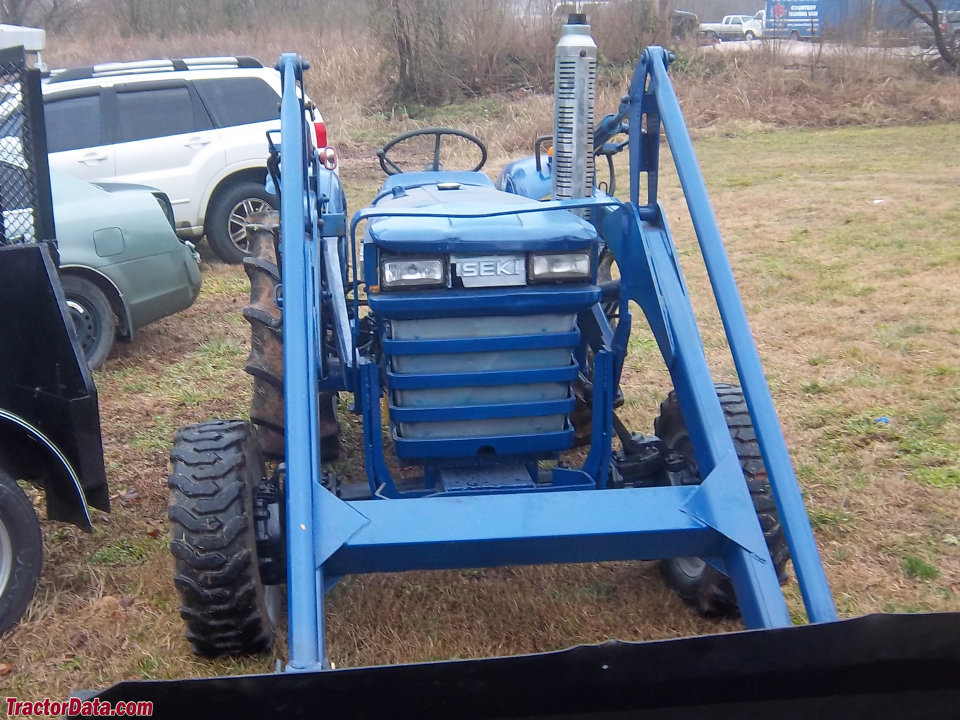

Iseki TS3110 tractor photo
1976 - 1980
Compact Utility tractor
Series map:
TS2810
TS3110
TS3510
20.9kw
22.8kw
25.7kw
Production
ManufacturerIseki
Compact Utility tractor
Variants
TS3110F4WD
Iseki TS3110 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank7.9 gal
29.9 L
Engine details ...
Iseki TS3110 Power
Engine30.6 hp
22.8 kW
Mechanical
Two- or four-wheel drive
Tractor hitch
Rear TypeI
Power Take-off (PTO)
Rear PTO Type540 (1.375)
Engine RPM630@2500
 773@2500
 990@2500
 1547@2500
Dimensions & Tires
2WD Wheelbase68.9 inches
175 cm
4WD Wheelbase70.1 inches
178 cm
Weight2513 to 2976 pounds
Front tire5.00-15
2WD Rear tire12.4/11-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
TS3110 references literature
TS3110 published by Iseki
