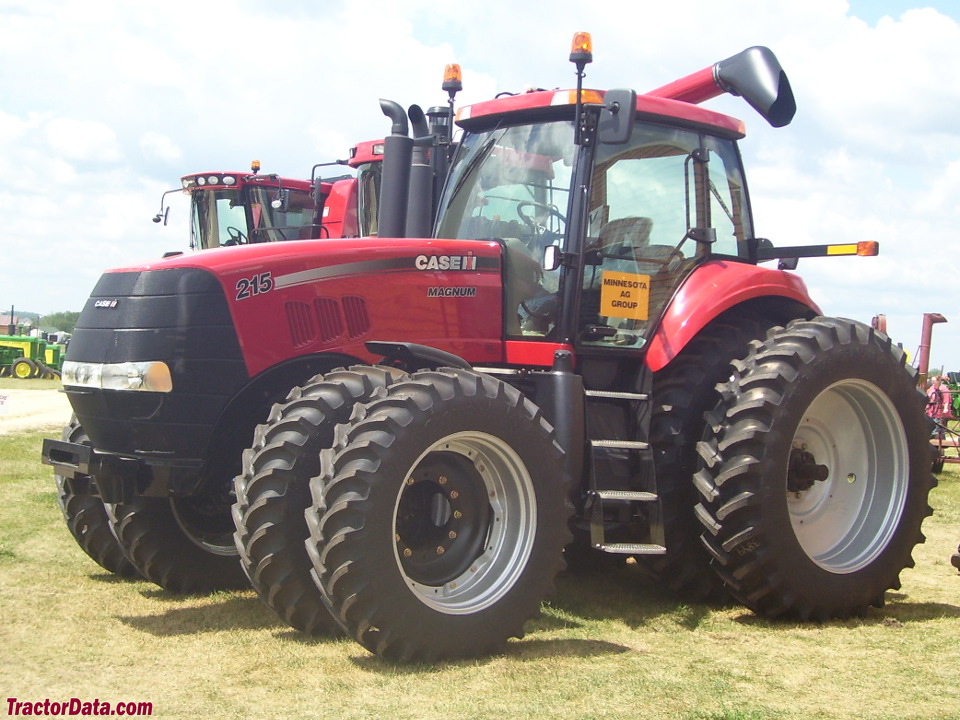

CaseIH Magnum 215
| | 2008 - 2011 |
| Magnum Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | CaseIH
|
| Row-Crop tractor |
| Built in Racine, Wisconsin, USA |
| Original price was $165,949 in 2010 |
| CaseIH Magnum 215 Power |
| Engine | 221 hp
164.8 kW
|
| PTO (claimed) | 175 hp
130.5 kW
|
| Drawbar (tested) | 151.54 hp
113.0 kW
|
| PTO (tested) | 215.81 hp
160.9 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Power steering |
| Differential hydraulic wet disc brakes |
| Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls. |
| Capacity |
| Fuel | 180 gal
681.3 L
|
| Hydraulic system | 45.5 gal
172.2 L
|
| Hydraulics |
| Type | PFC
|
| Capacity | 45.5 gal
172.2 L
|
| Valves | 3 to 5
|
| Total flow | 44 gpm
166.5 lpm
|
| | 59 gpm (optional)
223.3 lpm
|
| | 75 gpm (optional Twin-Flow)
283.9 lpm
|
| Tractor hitch |
| Rear Type | III/IIIN
|
| | IVN/III OptOptional
|
| Rear lift | 14070 lbs
6382 kg
|
| | 16375 lbsOptOptional
7427 kg
|
| | 16500 lbsOptOptional
7484 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| | 540/1000 OptOptional
|
| References |
 |
| Magnum Series Tractors published in 2007, by CaseIH |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on May 14, 2021 |
