CaseIH Magnum 235

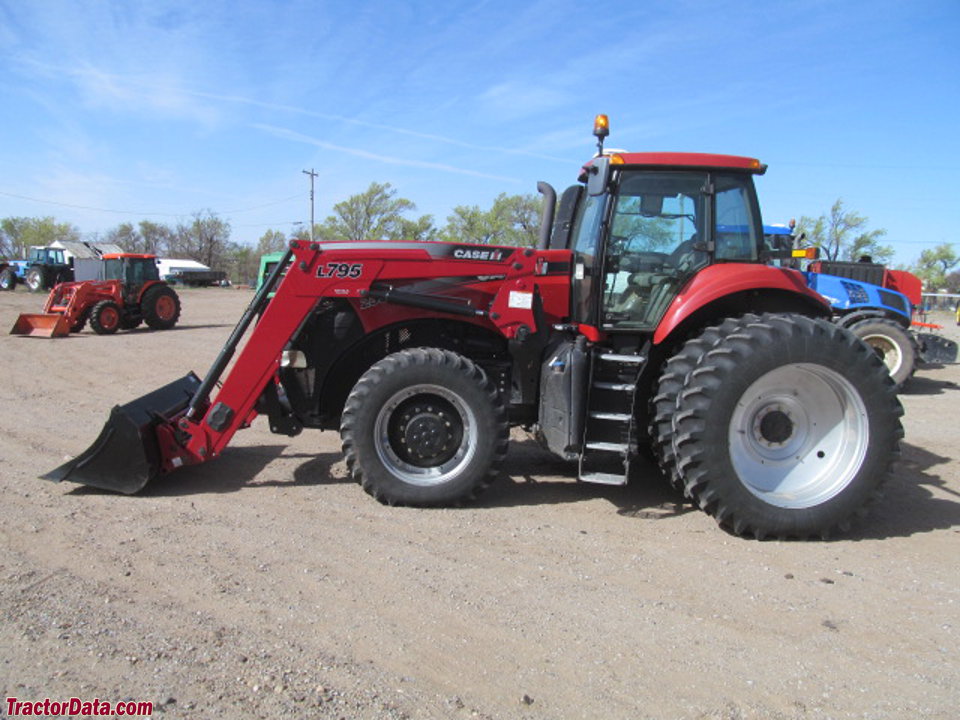

CaseIH Magnum 235 tractor photo
2011 - 2013
Magnum Series
Row-Crop tractor
Series map:
Magnum 235
Magnum 260
235.0hp
257.0hp
Production
ManufacturerCaseIH (a part of CNH)
Row-Crop tractor
Built in Racine, Wisconsin, USA
Variants
T8.275similar New Holland model
CaseIH Magnum 235 Engine
FPT 8.7L 6-cyl diesel
Fuel tank168 gal
635.9 L
Exhaust fluid (DEF)23.6 gal
89.3 L
Engine details ...
CaseIH Magnum 235 Transmissions
19-speed full power shift
18-speed full power shift
23-speed creeper
continuously variable transmission
Transmission details ...
CaseIH Magnum 235 Power
Engine (gross)235 hp
175.2 kW
Engine (max)268 hp
199.8 kW
PTO (claimed)195 hp
145.4 kW
Drawbar (tested)172.71 hp
128.8 kW
PTO (tested)198.86 hp
148.3 kW
Performance test details ...
Mechanical
Four-wheel drive
Steeringpower
Magnum Surveyor cab standard. Optional cab suspension.
Hydraulics
Typepressure-flow compensating
Rear valves4 to 6
Total flow44 gpm
166.5 lpm
 59 gpmOptOptional
223.3 lpm
 75 gpmOptOptional
283.9 lpm
Tractor hitch
Rear Type3/3N
Rear lift12,800 lbs (3/3N 109cm links)
5806 kg
 14,800 lbs (3/3N 96cm links)
6713 kg
 14,375 lbs (3/3N 109cm links opt.)
6520 kg
 16,375 lbs (3/3N 96cm links opt.)
7427 kg
Front Hitchoptional
Front lift9426 lbs
4275 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
 540/1000 (1.375)OptOptional
Engine RPM540@1804
 1000@1804
Front PTOindependent OptOptional
Front PTO Type1000 (1.375)
Dimensions & Tires
Wheelbase120 inches
304 cm
Weight27,180 lbs
12328 kg
Full dimensions and tires ...
Magnum 235 Serial Number Location
CaseIH Magnum 235 serial number location

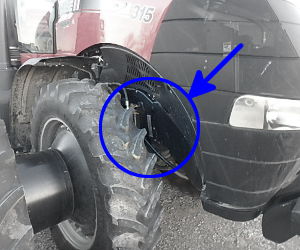

Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps200
Batteries2
Battery volts12
References
Magnum 235 references literature
Magnum Series Tractors published in 2011, by CaseIH
Magnum Series Tractors New 2011 Preview published in 2010, by CaseIH
