CaseIH Magnum 245
|
|
| MX245 ↑ | |||
| Series: | Magnum 215 ← | Magnum 245 | → Magnum 275 |
| Magnum 260 ↓ |
| Production | |
| Manufacturer: | CaseIH |
| Type: | Row-Crop tractor |
| Factory: | Racine, Wisconsin, USA |
| Original price: | $180,576 (2010 ) |
| CaseIH Magnum 245 Power | |
| Engine: | 248 hp 184.9 kW |
| PTO (claimed): | 200 hp 149.1 kW |
| Drawbar (tested): | 172.67 hp 128.8 kW |
| PTO (tested): | 242.84 hp 181.1 kW |
| CaseIH Magnum 245 Engine | |
| CNH 8.3L 6-cyl diesel | |
 Engine details ... |
| Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls. |
| Transmissions: | 18-speed full powershift |
| 19-speed full powershift | |
| 23-speed full powershift | |
 Transmission details ... | |

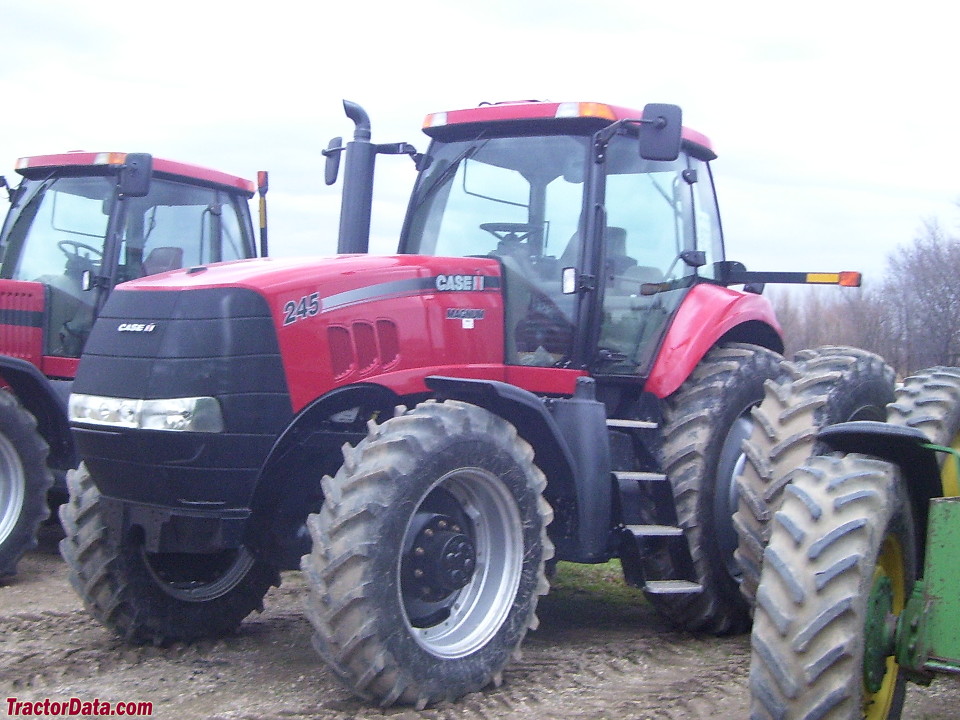

| Photos | |
 | |
 CaseIH Magnum 245 photos... | |
| Capacity | |
| Fuel: | 180 gal 681.3 L |
| Hydraulic system: | 45.5 gal 172.2 L |
| Hydraulics | |
| Type: | PFC |
| Capacity: | 45.5 gal 172.2 L |
| Valves: | 3 to 5 |
| Total flow: | 44 gpm 166.5 lpm |
| 59 gpm 223.3 lpm *Optional | |
| 75 gpm 283.9 lpm *Optional Twin-Flow | |
| Tractor hitch | |
| Rear Type: | III/IIIN |
| IVN/III*Optional | |
| Rear lift: | 14,070 lbs 6382 kg |
| 16,375 lbs 7427 kg *Optional | |
| 18,900 lbs 8573 kg *Optional | |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
| 540/1000*Optional | |
| Dimensions & Tires | |
| Wheelbase: | 118.3 inches 300 cm |
| Weight: | 20100 to 21010 pounds |
| Front tire: | 380/85R34 |
| Rear tire: | 480/80R46 |
 Full dimensions and tires ... | |
