CaseIH Maxxum 115

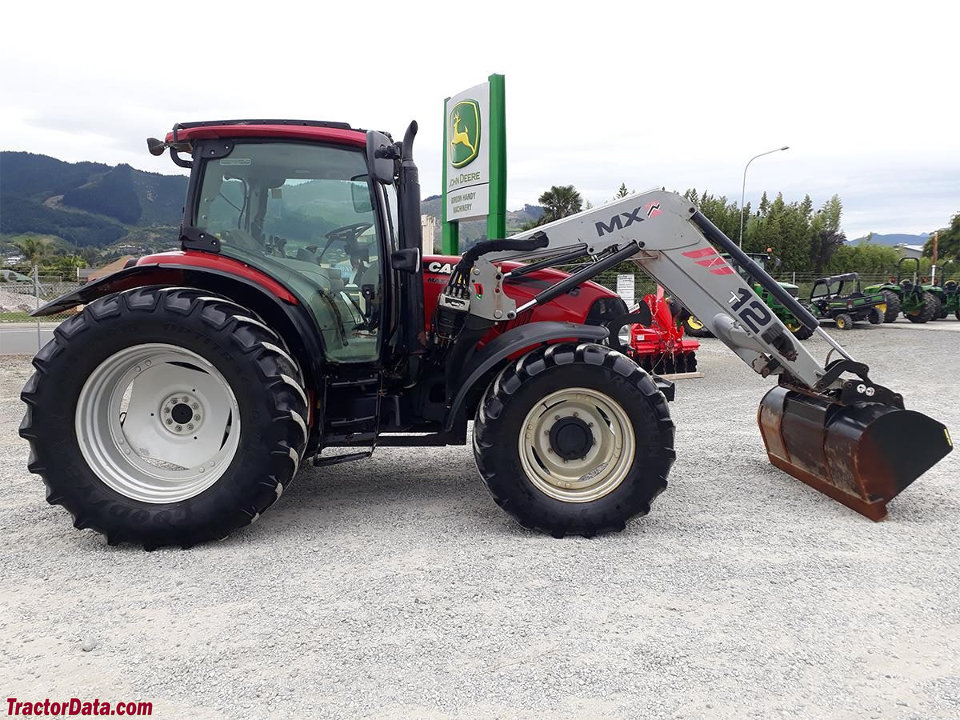

CaseIH Maxxum 115 tractor photo
2007 - 2022
Model year
Maxxum Series
Row-Crop tractor
Series:Maxxum 110Maxxum 115Maxxum 120
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Basildon, England
Original price:$54,945 (2011 )
CaseIH Maxxum 115 Power
Engine:115 hp
85.8 kW
PTO (claimed):95 hp
70.8 kW
Drawbar (tested):93.3 hp
69.6 kW
PTO (tested):111.4 hp
83.1 kW
power test details ...
CaseIH Maxxum 115 Engine
FPT 6.7L 6-cyl diesel
Fuel tank:66 gal
249.8 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic optional
Cab:Two-post ROPS. Cab optional.
Transmissions:12-speed mechanical shuttle
 24-speed partial power shift
 16-speed partial power shift
Transmission details ...
Hydraulics
Type:open center
Valves:2 to 3
Pump flow:16.6 gpm
62.8 lpm
Total flow:27.1 gpm
102.6 lpm
Steering flow:10.5 gpm
39.7 lpm
Tractor hitch
Rear Type:2
Control:mechanical draft control
Rear lift:7,509 lbs
3406 kg
 8,813 lbs
3997 kg (optional)
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:104.4 inches
265 cm (2WD)
 104.7 inches
265 cm (4WD)
Weight:9466 to 10900 pounds
Front tire:11.00-16
Rear tire:18.4R38 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:120
Battery CCA:960
Battery volts:12
