CaseIH Maxxum 110
|
|
| Production | |
| Manufacturer | CaseIH (a part of CNH) |
| Row-Crop tractor | |
| Built in Basildon, England | |
| Original price | $51,434 (2011 2WD ROPS) |
| $84,877 (2011 PRO Cab) | |
| Variants | |
| 110 PRO | 4WD, deluxe cab, PFC hydraulics |
| T6020 Elite | similar New Holland model |
| CaseIH Maxxum 110 Engine | |
| FPT 4.5L 4-cyl diesel | |
| Fuel tank | 46.5 gal 176.0 L |
 Engine details ... | |
| CaseIH Maxxum 110 Transmissions | |
| 12-speed mechanical shuttle | |
| 24-speed partial power shift | |
| 16-speed partial power shift | |
| 17-speed partial power shift | |
 Transmission details ... |
| CaseIH Maxxum 110 Power | |
| Engine (gross) | 110 hp 82.0 kW |
| Engine (max) | 120.7 hp 90.0 kW |
| PTO (claimed) | 90 hp 67.1 kW |
| Drawbar (tested) | 82.3 hp 61.4 kW |
| PTO (tested) | 108.5 hp 80.9 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Power steering | |
| Hydraulic wet disc brakes | |
| Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional | |
| Two-post folding ROPS. Cab optional. Deluxe cab standard on PRO model | |
| Photos | |
 | |

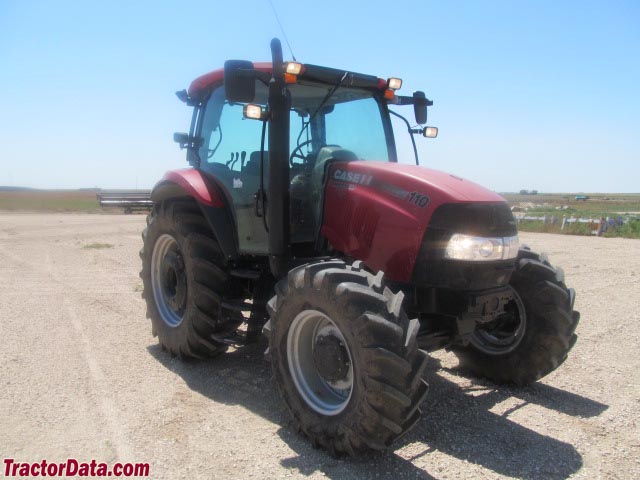

 CaseIH Maxxum 110 photos... | |
| Hydraulics | |
| Type | open center |
| closed center PFC (110 PRO) | |
| Valves | 2 to 4 |
| Pump flow | 16.6 gpm 62.8 lpm |
| 26.5 gpm (PFC) 100.3 lpm | |
| Total flow | 27.1 gpm 102.6 lpm |
| 37 gpm (PFC) 140.0 lpm | |
| Steering flow | 10.5 gpm 39.7 lpm |
| Tractor hitch | |
| Rear Type | 2 |
| 2/3N (110 PRO) | |
| Control | mechanical draft control |
| electronic draft control (110 PRO) | |
| Rear lift | 7,509 lbs 3406 kg |
| 8,813 lbs (optional) 3997 kg | |
| 9,620 lbs (110 PRO) 4363 kg | |
| Front Hitch | II OptOptional |
| Front lift | 8157 lbs 3700 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Engine RPM | 540@1969 |
| 540E@1546 | |
| 1000@2120 | |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 |
| Engine RPM | 1000@2120 |
| Dimensions & Tires | |
| 2WD Wheelbase | 93.3 inches 236 cm |
| 4WD Wheelbase | 94.9 inches 241 cm |
| Weight | 9202 to 11345 pounds |
| Front tire | 11.00-16 |
| Rear tire | 18.4R38 (2WD) |
 Full dimensions and tires ... | |
| CaseIH Maxxum 110 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| Battery CCA | 960 |
| Battery volts | 12 |
| References | |
 | |
| Maxxum Series Tractors 90-120 PTO HP published in 2008, by CaseIH | |
| Maxxum Series 101-141HP Rated Power published in 2010, by CaseIH |
