CaseIH Steiger 380
| | 2007 - 2008 |
| Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| CaseIH Steiger 380 Power |
| Engine: | 380 hp
283.4 kW
|
| PTO (claimed): | 335 hp
249.8 kW
|
| Drawbar (tested): | 319.41 hp
238.2 kW
|
| PTO (tested): | 390.87 hp
291.5 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | inboard planetary
|
| Steering: | articulated power
|
| Brakes: | integrated hydraulic wet disc
|
| Cab: | Cab standard with heat and air-conditioning, optional Luxury cab
|
| Transmission: | 16-speed full power shift
|
 Transmission details ... |
| Hydraulics |
| Type: | PFC
|
| Pump flow: | 40 gpm
151.4 lpm
|
| | 55 gpm
208.2 lpm *Optional high capacity pump.
|
| | 90 gpm
340.7 lpm *Optional TwinFlow
|
| Tractor hitch |
| Rear Type: | IVN
|
| Rear lift (at 24"/610mm): | 19620 lbs
8899 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent*Optional
|
| Rear RPM: | 1000
|
| Page information |
| Last update: | July 26, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

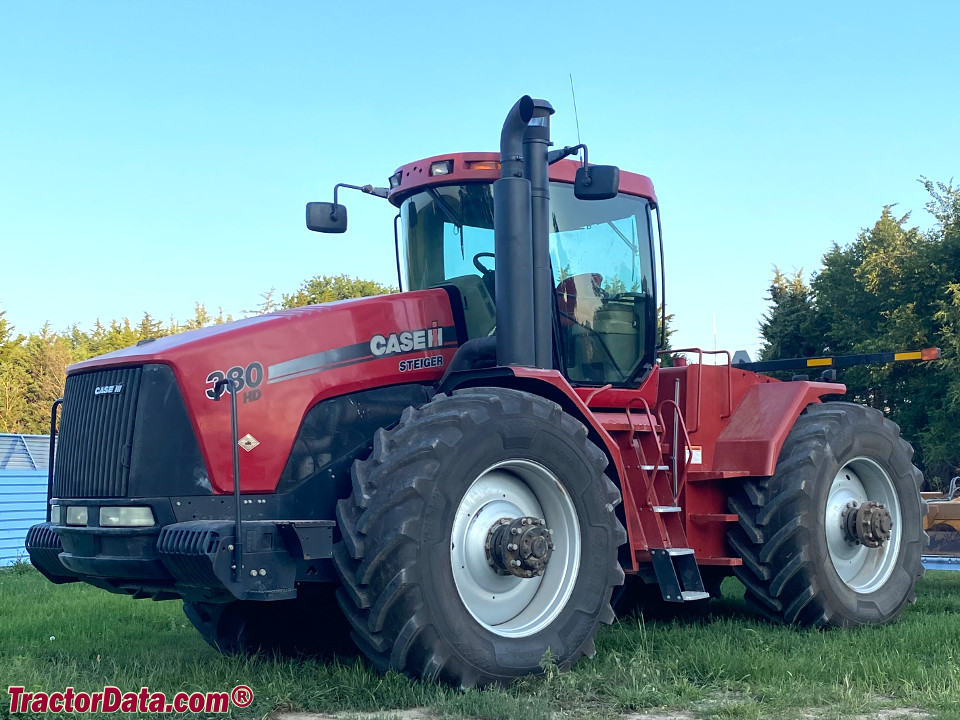

CaseIH Steiger 380 photos...
