John Deere 4600 Transmission


John Deere 4600 tractor photo
1998 - 2001
4000 Compact Series
Compact Utility tractor
Series map:
4500
4600
4700
39.0hp
43.0hp
48.0hp
Transmission options
9-speed unsynchronized gear
hydrostatic
12-speed partially synhcronized power shuttle
24-speed partially synhcronized power shuttle
Transmission
TransmissionCollar Shift
Typeunsynchronized gear
Gears9 forward and 3 reverse
Clutchdry disc
Oil capacity27.2 qts
25.7 L
Three speeds (1-3), plus reverse, in three ranges (A-C). Tractor must be stopped, and clutch used, to shift speeds or ranges.
Speeds
With 13.6-28 rear tries.

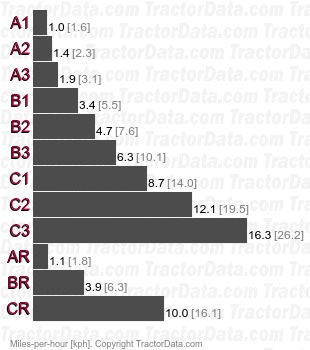

4600 Collar Shift unsynchronized gear speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (three-range)
Oil capacity35.2 qts
33.3 L
Hydrostatic transmission operated with two foot pedals. Push-button cruise control on dash. Tractor must be stopped to shift ranges.
Speeds
With 13.6-28 rear tries.

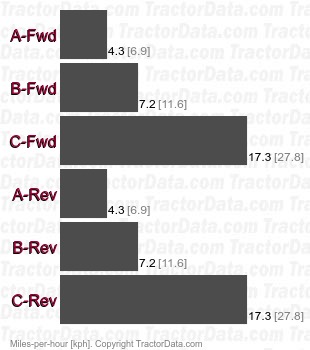

4600  hydrostatic speeds
Transmission
TransmissionPowrReverser
Typepartially synhcronized power shuttle
Gears12 forward and reverse
Clutchwet disc, two clutch packs with three 5-inch discs each
Oil capacity27.2 qts
25.7 L
Four speeds (1-4) in three ranges (A-C) with left-hand reverser on dash. Power shuttle allows direction changes without using the clutch. Speeds are synchronized and may be shifting on the move, using the clutch. Tractor must be stopped to shift ranges.
Speeds
With 13.6-28 rear tries.
4600 PowrReverser partially synhcronized power shuttle speeds
Transmission
TransmissionPowrReverser Creeper
Typepartially synhcronized power shuttle
Gears24 forward and reverse
Clutchwet disc, two clutch packs with three 5-inch discs each
Oil capacity27.2 qts
25.7 L
Add creeper range to the PowrReverser, engaged by separate lever. Tractor must be stopped, and clutch used, to shift in or out of creeper range.
Speeds
With 13.6-28 rear tries.

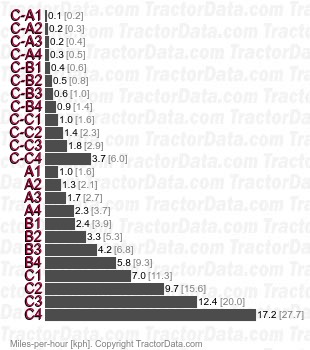

4600 PowrReverser Creeper partially synhcronized power shuttle speeds
