John Deere 4610 Transmission


John Deere 4610 tractor photo
2002 - 2004
4000 Ten Compact Series
Compact Utility tractor
Series map:
4510
4610
4710
38.4hp
42.8hp
46.3hp
Transmission options
9-speed partially synchronized
hydrostatic
12-speed power shuttle
Transmission
TransmissionSyncShift
Typepartially synchronized
Gears9 forward and 3 reverse
Oil capacity38.8 qts
36.7 L
The SyncShift transmission is operated via a gear shift lever and range shift lever. The tractor must be stopped, and clutch used, to change ranges. Gear shifts, within a range, may be made on the move using the clutch.
Speeds
With 13.6-28 rear tires.

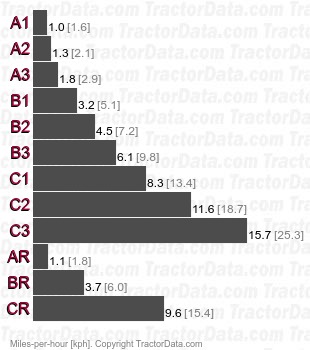

4610 SyncShift partially synchronized speeds
Transmission
TransmissioneHydro
Typehydrostatic
Gearsinfinite forward and reverse
Oil capacity36.8 qts
34.8 L
The eHydro is operated via a three-position range shift lever plus forward and reverse pedals. The tractor must be stopped to change range.
Speeds
With 13.6-28 rear tires.

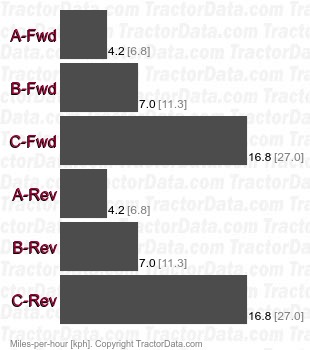

4610 eHydro hydrostatic speeds
Transmission
TransmissionPowrReverser
Typepower shuttle
Gears12 forward and reverse
Oil capacity38.8 qts
36.7 L
The PowrReverser is operated with a range shift lever, gear shift lever, and reverser lever. The tractor must be stopped, and clutch used, to change ranges. Gear shifts may be made while in motion using the clutch. A clutchless power shift can be made between forward and reverse using the reverser lever.
Speeds
With 13.6-28 rear tires.

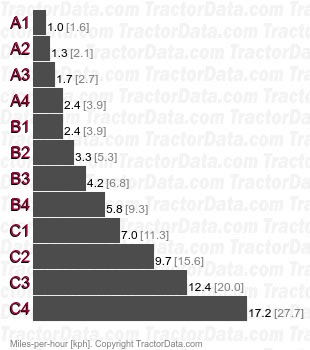

4610 PowrReverser power shuttle speeds
