John Deere 4500 Transmission


John Deere 4500 tractor photo
1998 - 2001
4000 Compact Series
Compact Utility tractor
Series map:
4400
4500
4600
35.7hp
39.0hp
43.0hp
Transmission options
9-speed unsynchronized gear
12-speed partially synhcronized power shuttle
Transmission
TransmissionCollar Shift
Typeunsynchronized gear
Gears9 forward and 3 reverse
Clutchdry disc
Oil capacity27.2 qts
25.7 L
Three speeds (1-3), plus reverse, in three ranges (A-C). Tractor must be stopped, and clutch used, to shift speeds or ranges.

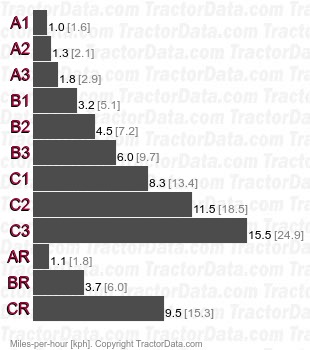

Speeds
With 14.9-24 rear tires.
4500 Collar Shift unsynchronized gear speeds
Transmission
TransmissionPowrReverser
Typepartially synhcronized power shuttle
Gears12 forward and reverse
Clutchwet disc, two clutch packs with three 5-inch discs each
Oil capacity27.2 qts
25.7 L
Four speeds (1-4) in three ranges (A-C) with left-hand reverser on dash. Power shuttle allows direction changes without using the clutch. Speeds are synchronized and may be shifted on the move, using the clutch. Tractor must be stopped to shift ranges.
Speeds
With 14.9-24 rear tires.
4500 PowrReverser partially synhcronized power shuttle speeds
