John Deere 4600 Engine


John Deere 4600 tractor photo
1999 - 2003
4000 Compact Series
Compact Utility tractor
1070
Series:450046004700
4610
Engine Detail
Yanmar 4TNE84
diesel
4-cylinder
liquid-cooled
Displacement:121 ci
2.0 L
Bore/Stroke:3.307x3.543 inches
84 x 90 mm
Power (gross):43 hp
32.1 kW
Fuel system:direct injection
Air cleaner:dry
Pre-heating:air heater
Compression:18:1
Rated RPM:2600
Torque:98 lb-ft
132.9 Nm
Torque RPM:1700
Starter volts:12
Starter power:2.7 hp
2.0 kW
Coolant capacity:7.6 qts
7.2 L
Engine Oil

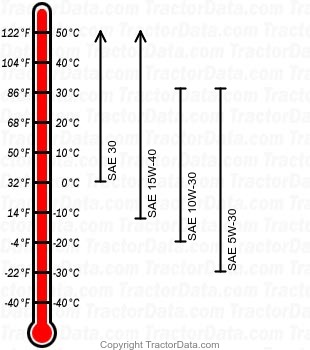

4600 diesel engine oil chart
Oil capacity:5.1 qts
4.8 L
