John Deere 1070 Engine


John Deere 1070 tractor photo
1989 - 1998
70 Compact Series
Compact Utility tractor
Yanmar built
Series map:
970
1070
33.0hp
38.5hp
Engine Detail
Yanmar 4TN84
diesel
4-cylinder
liquid-cooled
Displacement116.3 ci
1.9 L
Bore/Stroke3.31x3.39 inches
84 x 86 mm
Power (gross)38.5 hp
28.7 kW
Fuel systemdirect injection
Air cleanerdry
Pre-heatingair intake heater
Compression17.8:1
Rated RPM2600
Idle RPM800-2875
Starter volts12
Coolant capacity6.1 qts
5.8 L
Engine Oil

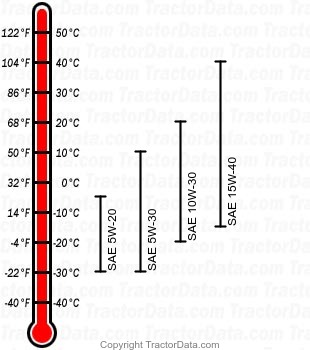

1070 diesel engine oil chart
Oil capacity5.6 qts
5.3 L
Oil change200 h
