Farmall 1206

Farmall 1206 tractor photo
1965 - 1967
Series map:
*Estimated engine power for comparison only.
ManufacturerFarmall (a part of International Harvester)
Built in Rock Island, Illinois, USA
Total built8,400
Original price was $9,450 in 1967
IH 1206standard front
Farmall 1206row-crop
Wheatlandlarger platform, heavy drawbar
Farmall 1206 Engine
International Harvester 5.9L 6-cyl diesel
Fuel tank42 gal
159.0 L
Engine details ...
Farmall 1206 Transmissions
8-speed unsynchronized
16-speed partial power shift
Transmission details ...
Farmall 1206 Power
Drawbar (claimed)99.6 hp
74.3 kW
PTO (claimed)112.6 hp
84.0 kW
Drawbar (tested)95.00 hp
70.8 kW
PTO (tested)112.64 hp
84.0 kW
Performance test details ...
Two- or four-wheel drive
Power steering
Differential hydraulic dry disc brakes
Open operator station. Optional one-door cab. Optional heat and air-conditioning.
Valves0 to 2
Pump flow12 gpm
45.4 lpm
Tractor hitch
Rear TypeIII
Power Take-off (PTO)
Rear PTOindependent
Rear RPM1000
Dimensions & Tires
Wheelbase101 inches
256 cm
Weight9400 to 10115 pounds
Front tire7.50-16
Rear tire18.4-38
Full dimensions and tires ...

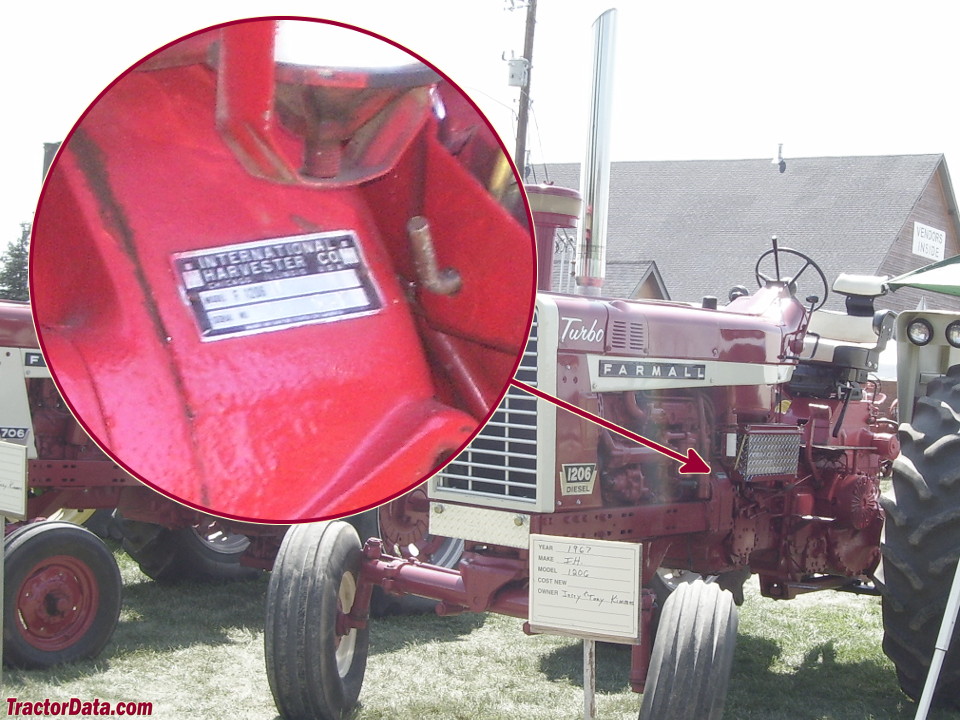

1206 Serial Number Location
Farmall 1206 serial number location
On clutch housing, left side
1206 Serial Numbers

FAQ: How to read a serial number table.
1206 references literature
1206 Turbo Tractors published by International Harvester
Farm Equipment Reference Catalog published in 1965, by International Harvester
