Tractors > Farmall > 1206

Farmall 1206 Tests



Farmall 1206 tractor photo
1965 - 1967
Series map:
806
1206
110.0hp
125.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 910

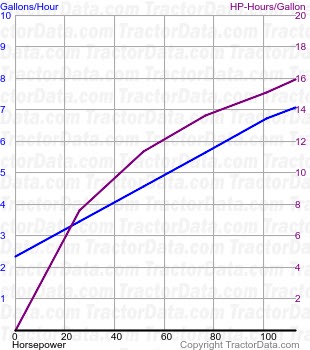

1206 fuel use from test 910
Nebraska Tractor Test 910
Diesel Torque Amplifier 2WD
September 8 - 23, 1965
Link: Nebraska Tractor Test 910 file
PTO performance
Power at rated engine speed112.64 hp
84.0 kW
Fuel use7.1 gal/hour
26.9 l/hour
Power at rated PTO speed106.63 hp
79.5 kW
Fuel use6.5 gal/hour
24.6 l/hour
Drawbar performance
Max power95.00 hp
70.8 kW
Fuel use7.0 gal/hour
26.5 l/hour
Gear 1-DD used for power test.
Max pull10,744 lbs
4873 kg
Gear 1-TA used for pull test.
