Series map:
806
1206
110.0hp
125.1hp*
*Estimated engine power for comparison only.
| Transmissions overview |
| 8-speed unsynchronized |
| 16-speed partial power shift |
| Transmission |
| Type | unsynchronized
|
| Gears | 8 forward and 4 reverse
|
| Transmission |
| Transmission | Torque Amplifier
|
| Type | partial power shift
|
| Gears | 16 forward and 8 reverse
|
| The Torque Amplifier (TA) provides a clutchless power shift between Direct Drive (DD) and the lower TA gearing. |

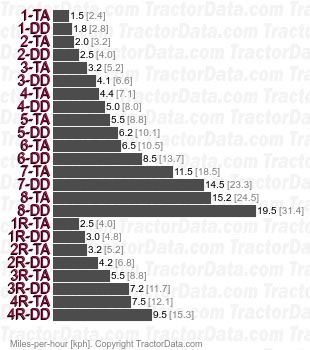

| Speeds |
|
