Farmall 504
| | 1961 - 1968 |
| Row-Crop tractor |
|
Series map:
404
504
40.8hp*
51.1hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Farmall (a part of International Harvester)
|
| Row-Crop tractor |
| Built in Rock Island, Illinois, USA |
| Farmall 504 Power |
| Drawbar (claimed) | 41 hp
30.6 kW
|
| PTO (claimed) | 46 hp
34.3 kW
|
| Plows | 3-4
|
| Drawbar (tested) | 40.41 hp
30.1 kW
|
| PTO (tested) | 46.20 hp
34.5 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| Steering | power OptOptional
|
| Differential mechanical disc brakes |
| Open operator station. |
| Capacity |
| Fuel | 23 gal
87.1 L
|
| Hydraulic system | 13 gal
49.2 L
|
| Hydraulics |
| Capacity | 13 gal
49.2 L
|
| Pump flow | 7 gpm (hitch pump)
26.5 lpm
|
| | 12 gpm (steering/remote pump)
45.4 lpm
|
| Total flow | 19 gpm
71.9 lpm
|
| Tractor hitch |
| Rear Type | I
|
| | II OptOptional
|
| Control | position and draft control
|
| Type | IH Fast Hitch OptOptional
|
| Power Take-off (PTO) |
| Rear PTO Type | 540
|

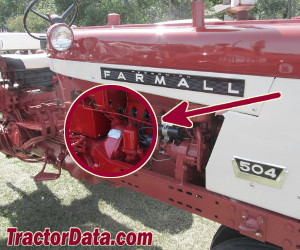

| 504 Serial Number Location |
 |
| Right side of clutch housing |
| References |
 |
| Farm Loaders published in 1962, by International Harvester |
| Farm Loaders published in 1965, by International Harvester |
| Farm Loaders published in 1970, by International Harvester |
| 504 46hp. Tractors published by International Harvester |
| Farm Equipment Reference Catalog published in 1965, by International Harvester |
