Tractors > International Harvester > 504

International Harvester 504



International Harvester 504 tractor photo
1961 - 1968
Utility tractor
Series map:
404
504
606
40.8hp*
51.1hp*
55.6hp*
*Estimated engine power for comparison only.
Production
ManufacturerInternational Harvester
Utility tractor
Built in Rock Island, Illinois, USA
Original price was $4,200 in 1968
Variants
Farmall 504row-crop
IH 504utility
504HChigh-clearance
IH 2504industrial
International Harvester 504 Engines
International Harvester 3.1L 4-cyl diesel
International Harvester 2.5L 4-cyl gasoline
Engine details ...
International Harvester 504 Transmissions
5-speed unsynchronized gear
10-speed two-speed power shift
Transmission details ...
International Harvester 504 Power
Drawbar (claimed)41 hp
30.6 kW
PTO (claimed)46 hp
34.3 kW
Plows3-4
Mechanical
Two-wheel drive
Power steering
Open operator station.
Photos

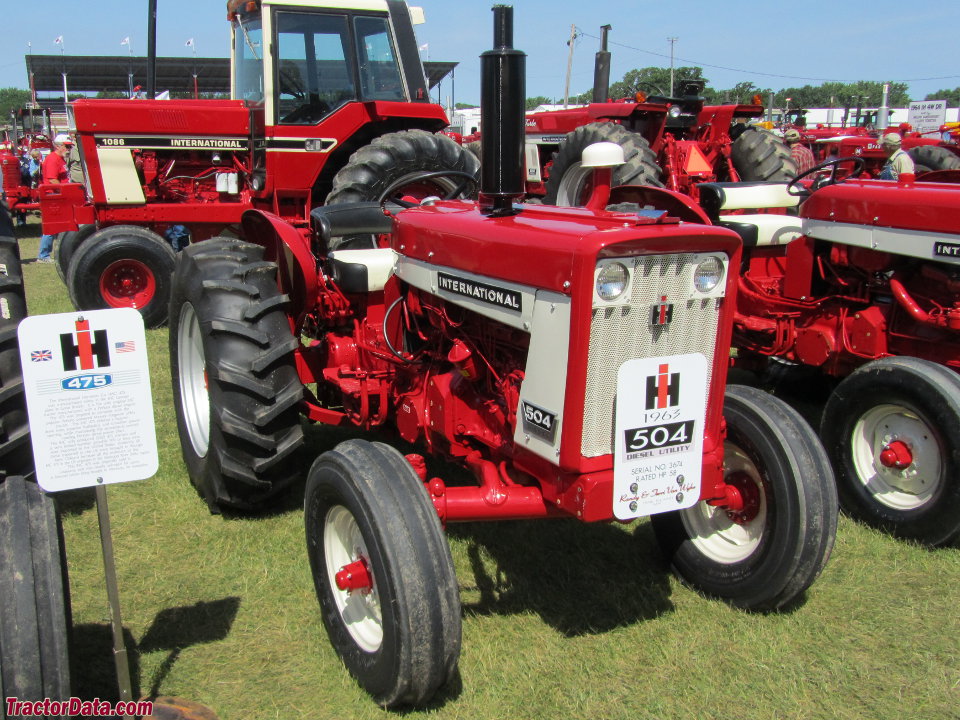

International Harvester 504 diesel utility.
International Harvester 504 photos...
Capacity
Fuel15 gal
56.8 L
Hydraulic system13 gal
49.2 L
Hydraulics
Capacity13 gal
49.2 L
Pump flow7 gpm (hitch pump)
26.5 lpm
 12 gpm (steering/remote pump)
45.4 lpm
 17 gpm (optional loader pump)
64.3 lpm
Tractor hitch
Rear TypeI
 II OptOptional
Controlposition and draft control
TypeIH Fast Hitch OptOptional
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Dimensions & Tires
Wheelbase73 inches
185 cm
Weight4458 lbs
2022 kg
Front tire6.00-16
Rear tire12.4-28
Full dimensions and tires ...
International Harvester 504 attachments
front-end loader
Attachment details ...
504 Serial Number Location
International Harvester 504 serial number location
Left or right side of clutch housing
504 Serial Numbers
1962501
19633376
19646797
196510996
196614695
196717992
196820392

FAQ: How to read a serial number table.
Belt Pulley
Diameter11 inches
27 cm
RPM1158
Speed3334 ft/min
1016.20 meters/min
References
504 references literature
Industrial Tractors & Equipment Buyers Guide published in 1962, by International Harvester
Farm Loaders published in 1962, by International Harvester
Farm Loaders published in 1965, by International Harvester
Farm Loaders published in 1970, by International Harvester
504 46hp. Tractors published by International Harvester
Farm Equipment Reference Catalog published in 1965, by International Harvester
