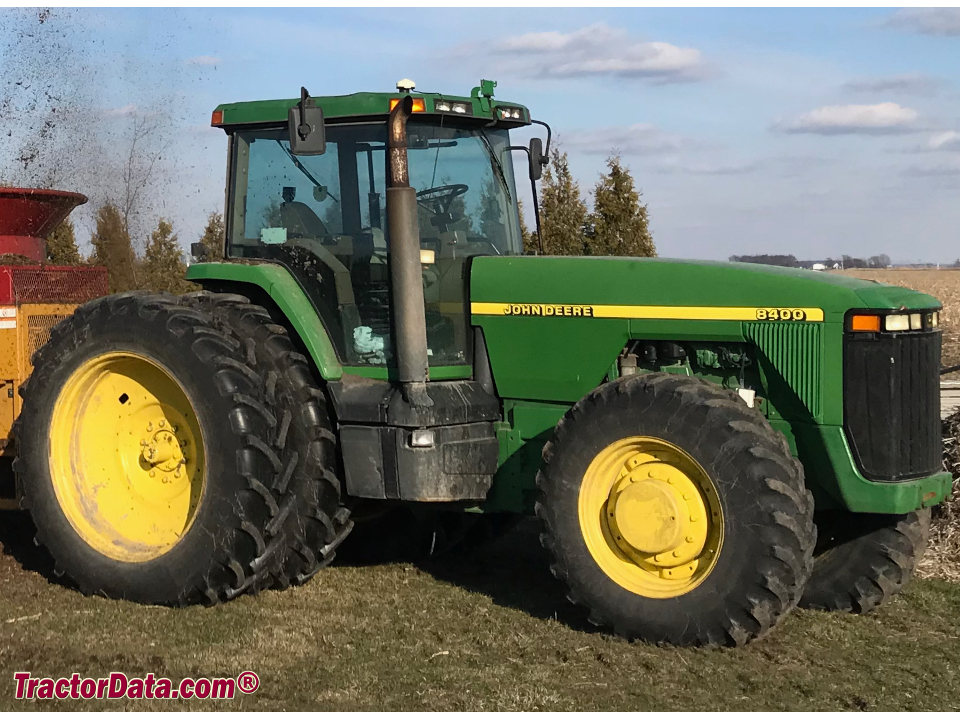

John Deere 8400
| | 1995 - 1999 |
|
| 8000/8000T Series | | Row-Crop tractor |
|
Series map:
8300
8400
222.2hp*
250.0hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Waterloo, Iowa, USA |
| John Deere 8400 Power |
| PTO (claimed) | 225 hp
167.8 kW
|
| Drawbar (tested) | 202.28 hp
150.8 kW
|
| PTO (tested) | 252.21 hp
188.1 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | electro-hydraulic
|
| Power steering |
| Differential hydraulic wet disc brakes |
| CommandView Cab standard. Row-Trak guidance optional. |
| Capacity |
| Fuel | 135 gal
511.0 L
|
| Hydraulic system | 37 gal
140.0 L
|
| Front hubs | 3.2 qts (each)
3.0 L
|
| Front diff. | 11.5 qts
10.9 L
|
| Hydraulics |
| Type | closed center pressure-flow compensated (PFC)
|
| Capacity | 37 gal
140.0 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 3 to 5
|
| SCV flow | 30 gpm
113.6 lpm
|
| Tractor hitch |
| Rear Type | III/IIIN
|
| Control | electro-hydraulic draft sensing
|
| Rear lift | 11700 lbs
5307 kg
|
| | 15650 lbsOptOptional
7098 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic wet disc
|
| Rear PTO Type | 1000 (1.75)
|
| | 1000 (1.375)OptOptional
|
| | 540 (1.375)OptOptional
|
| Engine RPM | 540@1930
|
| | 1000@2200
|
| 8400 Serial Number Location |
 |
| Serial number plate on the rear of the tractor, above the PTO shaft. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 140
|
| Batteries | 2
|
| Battery CCA | 925
|
| Battery volts | 12
|

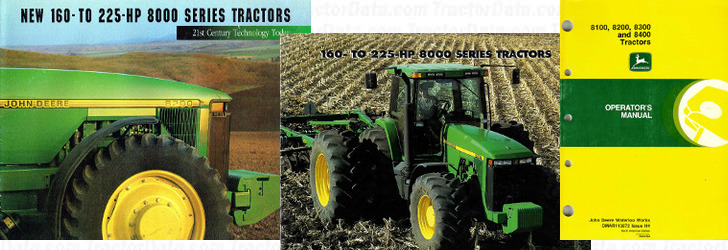

| References |
 |
| New 8000 Series Tractors published in 1995, by John Deere |
| 8000 Series Tractors published in 1996, by John Deere |
| Operator's Manual 8100, 8200, 8300 and 8400 Tractors (OMAR113872) published in 1994 |
| Page information |
 |
| Copyright 2025 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on June 10, 2025 |
