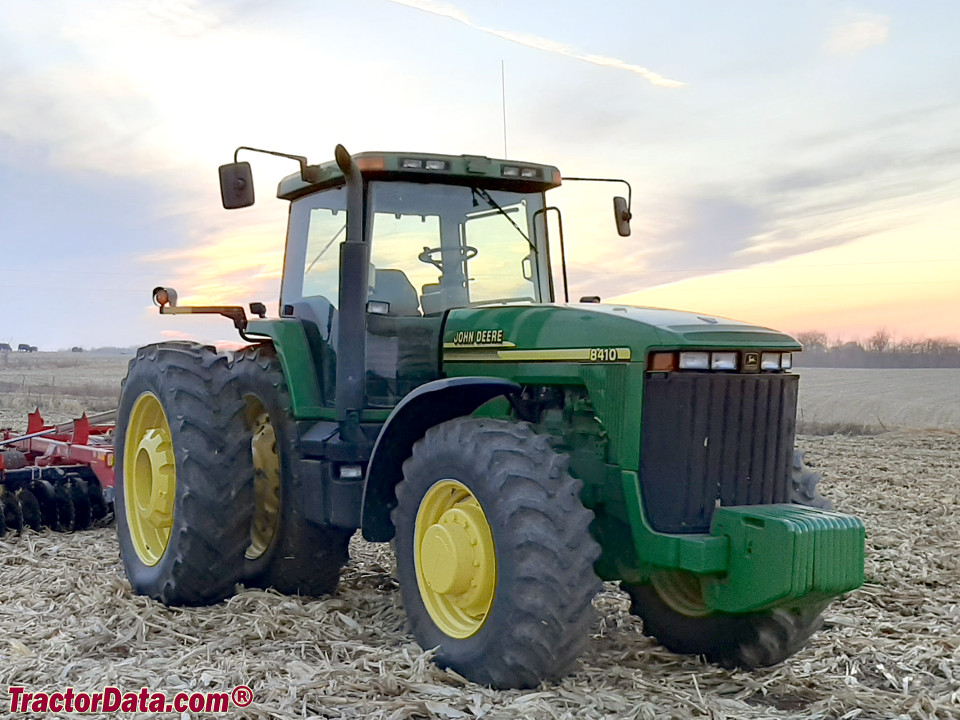

John Deere 8410
| | 1999 - 2002 |
| 8000 Ten Series | | Row-Crop tractor |
|
Series map:
8310
8410
227.8hp*
261.1hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Waterloo, Iowa, USA |
| Variants |
| 8410 | wheeled tractor
|
| 8410T | crawler tractor
|
| John Deere 8410 Power |
| PTO (claimed) | 235 hp
175.2 kW
|
| Drawbar (tested) | 203.49 hp
151.7 kW
|
| PTO (tested) | 269.98 hp
201.3 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Cab standard. |
| Hydraulics |
| Type | closed center PFC
|
| Valves | 3 to 5
|
| Pump flow | 30 gpm
113.6 lpm
|
| Tractor hitch |
| Rear Type | III, IIIN
|
| Rear lift | 11,700 lbs
5307 kg
|
| | 15,650 lbs (optional)
7098 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| | 540/1000 OptOptional
|
| 8410 Serial Numbers |
| Location: | Rear of tractor
|
| Electrical |
| Ground | negative
|
| Charging amps | 140
|
| Batteries | 2
|
| Battery CCA | 1,850
|
| Battery volts | 12
|
| References |
 |
| 8000/8000T TEN Series Tractors Product Information Handbook published in 1999, by John Deere |
