John Deere 8300

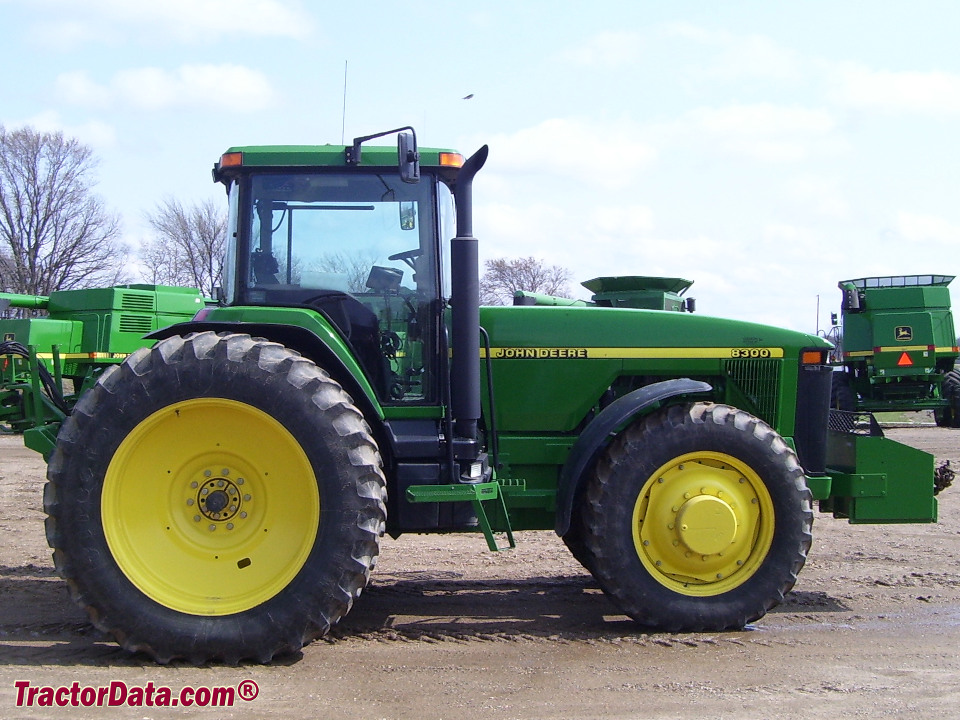

John Deere 8300 tractor photo
1995 - 1999
Model year
8000/8000T Series
Row-Crop tractor
4960
Series:820083008400
8310
Production
Manufacturer:John Deere
Type:Row-Crop tractor
Factory:Waterloo, Iowa, USA
John Deere 8300 Power
PTO (claimed):200 hp
149.1 kW
Drawbar (tested):179.60 hp
133.9 kW
PTO (tested):224.92 hp
167.7 kW
power test details ...
John Deere 8300 Engine
John Deere 7.6L 6-cyl diesel
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:electro-hydraulic
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:CommandView Cab standard. Row-Trak guidance optional.
Transmission:16-speed full power shift
Transmission details ...
Capacity
Fuel:135 gal
511.0 L
Hydraulic system:37 gal
140.0 L
Front hubs:3.2 qts
3.0 L (each)
Front diff.:11.5 qts
10.9 L
Hydraulics
Type:closed center pressure-flow compensated (PFC)
Capacity:37 gal
140.0 L
Pressure:2900 psi
200.0 bar
Valves:3 to 5
SCV flow:30 gpm
113.6 lpm
Tractor hitch
Rear Type:3/3N
Control:electro-hydraulic draft sensing
Rear lift:11,700 lbs
5307 kg
 15,650 lbs
7098 kg (optional)
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1.75)
 540/1000 (1.375 optional)
Dimensions & Tires
2WD Wheelbase:122.8 inches
311 cm
4WD Wheelbase:116.1 inches
294 cm
Weight:17030 to 19422 pounds
Front tire:11.00-24
2WD Rear tire:18.4R46
Full dimensions and tires ...
8300 Serial Numbers
Location:Serial number plate on the rear of the tractor, above the PTO shaft.
photo of 8300 serial number

1995:1001
1996:5001
1997:10001
1998:20001
1999:24001

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:140
Batteries:2
Battery CCA:925
Battery volts:12
