John Deere 8210

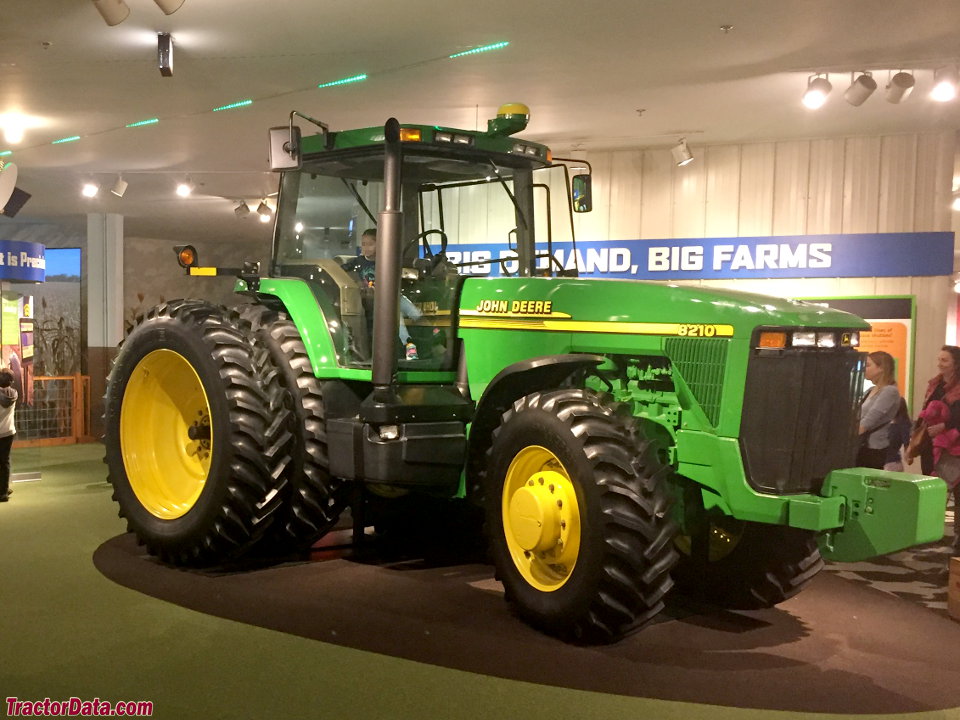

John Deere 8210 tractor photo
1999 - 2002
8000 Ten Series
Row-Crop tractor
Series map:
8110
8210
8310
183.3hp*
205.6hp*
227.8hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Variants
8210wheeled tractor
8210Tcrawler tractor
John Deere 8210 Engine
John Deere 8.1L 6-cyl diesel
Fuel tank135 gal
511.0 L
Engine details ...
John Deere 8210 Power
PTO (claimed)185 hp
138.0 kW
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Power steering
Hydraulics
Typeclosed center PFC
Valves3 to 5
Pump flow30 gpm
113.6 lpm
Tractor hitch
Rear TypeIII, IIIN
Rear lift10,400 lbs
4717 kg
 14,165 lbsOptOptional
6425 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000
 540/1000 OptOptional
Dimensions & Tires
Wheelbase116.9 inches
296 cm
Weight17,898 lbs
8118 kg
Front tire16.9R30
Rear tire18.4R46
Full dimensions and tires ...
8210 Serial Numbers
Location:Serial number plate on the rear of the John Deere 8210.
Electrical
Charging amps140
Batteries2
Battery CCA1,850
Battery volts12
References
8210 references literature
8000/8000T TEN Series Tractors Product Information Handbook published in 1999, by John Deere
