Tractors > New Holland > TM120

New Holland TM120 Transmission



New Holland TM120 tractor photo
2002 - 2007
TM Series
Row-Crop tractor
Series map:
TM120
TM130
120.0hp
130.0hp
Transmission options
24-speed partially synchronized
20-speed partially synchronized
18-speed six-speed power shift
18-speed full power shift
Transmission
TransmissionDual Command
Typepartially synchronized
Gears24 forward and 12 reverse
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and two-speed push button power shift. Shifts between ranges B/C are synchronized. Optional creeper ranges provides a total of 48 forward gears.
Speeds
With 40 KPH option and 18.4R38 rear tres.

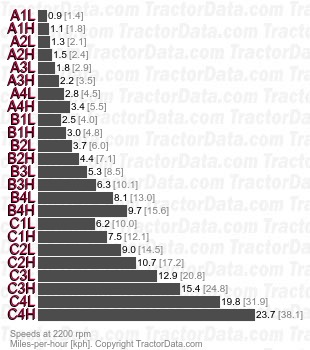

TM120 Dual Command partially synchronized speeds

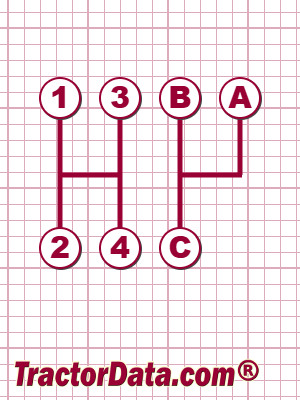

Shift Pattern
New Holland TM120 transmission controls
Transmission
TransmissionShuttle Command
Typepartially synchronized
Gears20 forward and 16 reverse
Five synchronized gears (1-5) in three ranges (A-D) with mechanical shuttle. Range shift from B to A is not synchronized. Optional creeper ranges provides a total of 40 forward gears.
Speeds
With 40 KPH option and 18.4R38 rear tres.

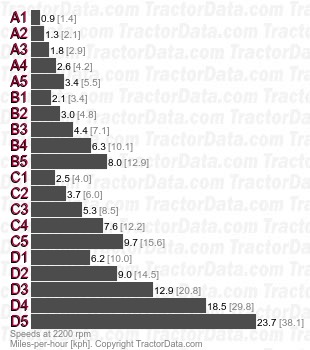

TM120 Shuttle Command partially synchronized speeds

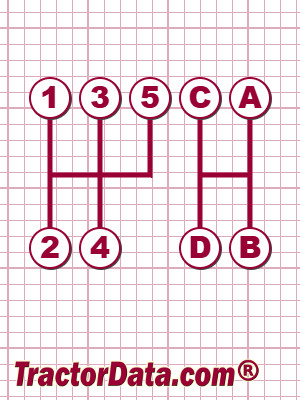

Shift Pattern
New Holland TM120 transmission controls
Transmission
TransmissionRange Command
Typesix-speed power shift
Gears18 forward and 6 reverse
Clutchelectro-hydraulic wet disc
Six power shift gears in three ranges with power shuttle. Available in 30 KPH (17-speed) and 40 KPH (18-speed versions).
Speeds
With 40 KPH option and 18.4R38 rear tres.

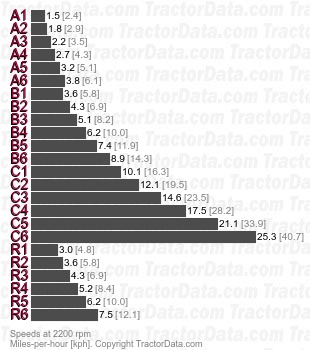

TM120 Range Command six-speed power shift speeds
Shift Pattern
New Holland TM120 transmission controls
Transmission
TransmissionPower Command
Typefull power shift
Gears18 forward and 6 reverse
Clutchelectro-hydraulic wet disc
Push-button power shift with power shuttle. Available in 30 KPH (17-speed) and 40 KPH (18-speed versions). Optional creeper range provides an addition 10 forward and 6 reverse gears.
Speeds
With 40 KPH option and 18.4R38 rear tres.

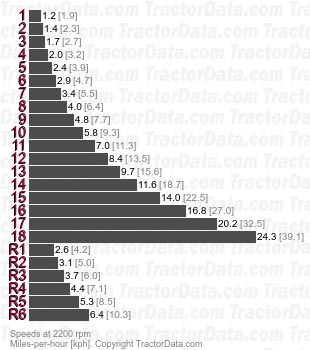

TM120 Power Command full power shift speeds

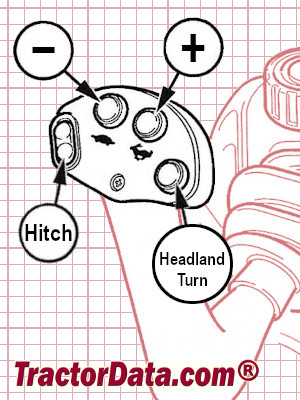

Shift Pattern
New Holland TM120 transmission controls
