New Holland TM120 Tests


New Holland TM120 tractor photo
2002 - 2007
TM Series
Row-Crop tractor
Series map:
TM120
TM130
120.0hp
130.0hp
OCED Tractor Test 2085

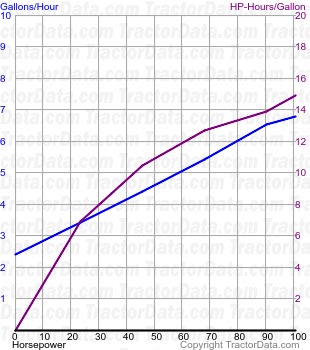

TM120 fuel use from test 428
OCED Tractor Test 2085
Diesel Range Command 4WD
December 1, 2002 - March 1, 2003
Link: OCED Tractor Test 2085 file
PTO performance
Max power104.9 hp
78.2 kW
Fuel use6.4 gal/hour
24.2 l/hour
Power at rated engine speed100.7 hp
75.1 kW
Fuel use6.8 gal/hour
25.7 l/hour
Power at rated PTO speed104.1 hp
77.6 kW
Fuel use6.7 gal/hour
25.4 l/hour
Drawbar performance
Max power83.0 hp
61.9 kW
Fuel use6.8 gal/hour
25.7 l/hour
Gear 9 used for power test.
Max pull12,320 lbs
5588 kg
Gear 1 used for pull test.
