Series map:
TS90
TS100
TS110
90.0hp
100.0hp
110.0hp
| Transmission options |
| 8-speed unsynchronized gear |
| 16-speed two-speed power shift |
| 12-speed |
| 24-speed |
| 16-speed four-speed power shift |
| Transmission |
| Transmission | EconoShift
|
| Type | unsynchronized gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|
| Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range. Optional creeper range. |

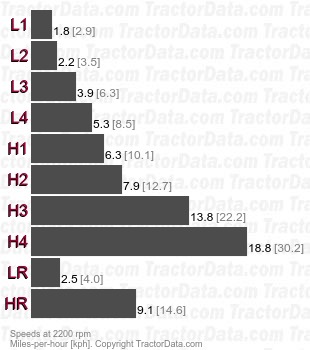

| Speeds |
| With 16.9-34 rear tires. |
|
| Transmission |
| Transmission | Econo Dual Command
|
| Type | two-speed power shift
|
| Gears | 16 forward and 4 reverse
|
| Clutch | dry disc
|
| Same as EconoShift, with an additional under-speed power shift button on the dashboard. The direct/underspeed ranges may be shifted on the move without the clutch. Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range. Optional creeper range. |

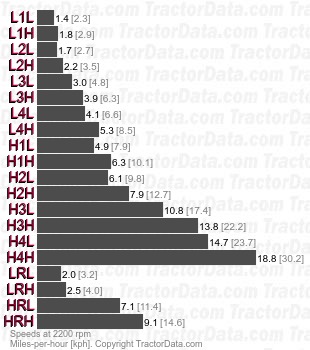

| Speeds |
| With 16.9-34 rear tires. |
|
| Transmission |
| Transmission | Synchro Command
|
| Gears | 12 forward and reverse
|
| Oil capacity | 60 qts
56.8 L
|
| Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range. |

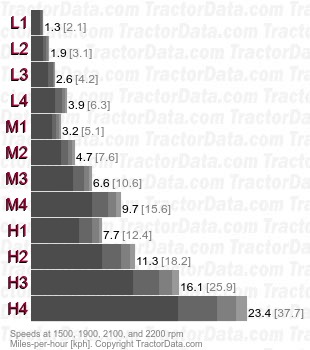

| Speeds |
| 16.9-38 rear tires. |
|
| Transmission |
| Transmission | Synchro Dual Command
|
| Gears | 24 forward and reverse
|
| Oil capacity | 60 qts
56.8 L
|
| Same as Synchro Command, with an additional under-speed power shift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse. |
| Speeds |
| 16.9-38 rear tires. |
|
| Transmission |
| Transmission | ElectroShift
|
| Type | four-speed power shift
|
| Gears | 16 forward and reverse
|
| Oil capacity | 64 qts
60.6 L
|
| Four gears in four ranges (A-D). Push-button power shifting between gears and clutch-free shifting between ranges A-B and C-D. Synchronized shift from ranges B to C. Power shuttle shifting. |
| Transmission |
| Transmission | ElectroShift - creeper
|
| Gears | 24 forward and reverse
|
| Additional range of creeper gears can be selected using the clutch with the range in low. Creeper engaged by a toggle switch. |
