New Holland TS100 Tests
|
|
| OCED Tractor Test 1801 | |||
| |||
| OCED Tractor Test 1801 | |
| Diesel 16-speed 4WD July 1998 - September 1998, Link: OCED Tractor Test 1801 file | |
| PTO performance | |
| Max power | 88.5 hp 66.0 kW |

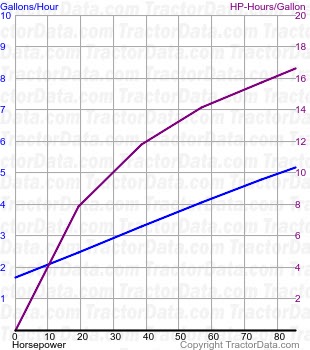

| Fuel use | 5.1 gal/hour 19.3 l/hour |
| Power at rated engine speed | 85.4 hp 63.7 kW |
| Fuel use | 5.2 gal/hour 19.7 l/hour |
| Power at rated PTO speed | 88.5 hp 66.0 kW |
| Fuel use | 5.1 gal/hour 19.3 l/hour |
| Drawbar performance | |
| Max power | 71.6 hp 53.4 kW |
| Fuel use | 5.1 gal/hour 19.3 l/hour |
| Gear 6L used for power test. | |
| Max pull | 9780 lbs 4436 kg |
| Gear 2L used for pull test. | |
