Ford TW-25 Transmission


Ford TW-25 tractor photo
1983 - 1989
TW Series
Row-Crop tractor
Series map:
TW-15
TW-25
TW-35
137.0hp
156.0hp
187.0hp
Transmissions overview
16-speed partial power shift
24-speed
Transmission
TransmissionDual Power
Typepartial power shift
Gears16 forward and 4 reverse
Clutch356mm dry disc
Oil capacity92 qts
87.1 L
Electrically-actuated Dual Power allows shift-on-the-move from Direct mode to lower Power Mode for each gear.
Speeds
With 18.4x38 rear tires.

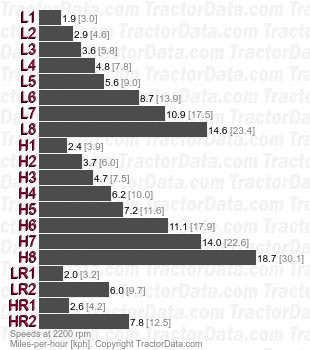

TW-25 Dual Power partial power shift speeds
Transmission
Transmissioncreeper
Gears24 forward and 6 reverse
