Ford TW-20 Transmission
|
|
| Transmissions overview | |
| 16-speed | |
| 8-speed |
| Transmission | |
| Transmission | Dual Power |
| Gears | 16 forward and 4 reverse |
| Clutch | 356mm cerametallic disc |
| Oil capacity | 79 qts 74.8 L |
| The Dual Power pedal is located to the right of the clutch pedal. Pushing heel-down on the pedal engages an underdrive. The Dual Power may be shifted on the move. | |

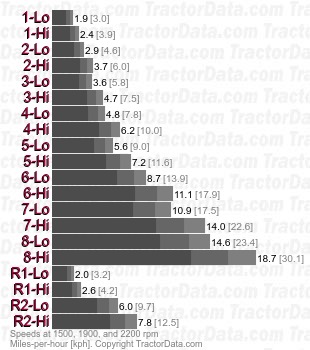

| Speeds | |
| 18.4x38 rear tires. | |
|
| Transmission | |
| Gears | 8 forward and 2 reverse |
| Clutch | 356mm cerametallic disc |
| Oil capacity | 73 qts 69.1 L |
| Left lever selects high, low, or park. Right lever selects one of four forward gears or reverse. Tractor must be stopped before changing gears. | |

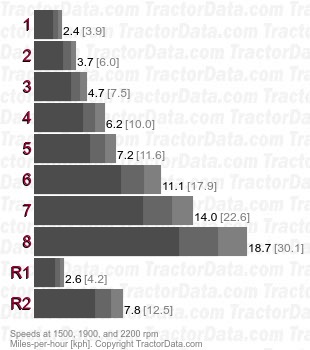

| Speeds | |
| 18.4x38 rear tires. | |
|
