Ford TW-15 Transmission


Ford TW-15 tractor photo
1983 - 1990
TW Series
Row-Crop tractor
TW-10
Series:TW-5TW-15TW-25
8630
Transmissions overview
16-speed two-speed power shift
24-speed
Transmission
Transmission:Dual Power
Type:two-speed power shift
Gears:16 forward and 4 reverse
Clutch:356mm dry disc
Oil capacity:92 qts
87.1 L
Electrically-actuated Dual Power allows shift-on-the-move from Direct mode to lower Power Mode for each gear.
Speeds
With 18.4x38 rear tires.

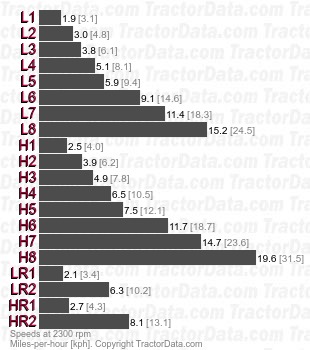

TW-15 Dual Power two-speed power shift speeds
Transmission
Gears:24 forward and 6 reverse
