Ford TW-35 Transmission


Ford TW-35 tractor photo
1983 - 1986
TW Series
Row-Crop tractor
Series map:
TW-25
TW-35
156.0hp
187.0hp
Transmission
TransmissionDual Power
Typepartial power shift
Gears16 forward and 4 reverse
Clutch356mm dry disc
Oil capacity92 qts
87.1 L
Electrically-actuated Dual Power allows shift-on-the-move from Direct mode to lower Power Mode for each gear.

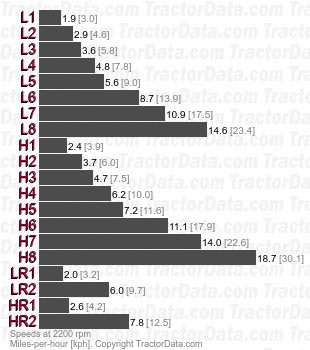

Speeds
With 18.4x38 rear tires.
TW-35 Dual Power partial power shift speeds
