| | 1996 - 2000 |
| 9300 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
9370
9380
9390
360.0hp
400.0hp
425.0hp
| Transmission options |
| 12-speed full powershift |
| 12-speed |
| 24-speed |
| Transmission |
| Type | full powershift
|
| Gears | 12 forward and 3 reverse
|
| Clutch | wet disc
|
| Speeds |
|
| Transmission |

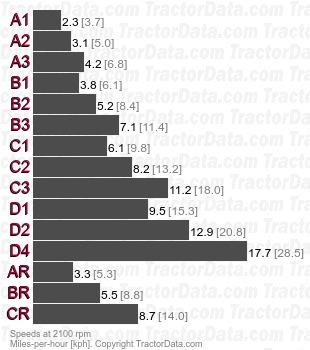

| Transmission | SynchroShift
|
| Gears | 12 forward and 3 reverse
|
| Clutch | wet disc
|
| Three synchronized gears (1-3) in four synchronized ranges (A-D). |
| Speeds |
|
| Transmission |

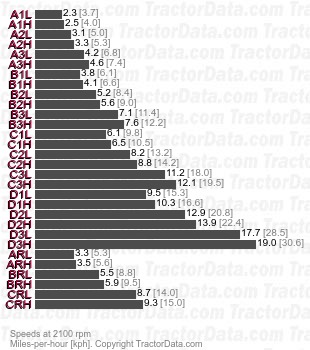

| Transmission | Hi-Lo SynchroShift
|
| Gears | 24 forward and 6 reverse
|
| Clutch | wet disc
|
| Three synchronized gears (1-3) in four synchronized ranges (A-D) with a two-speed high/low shift. |
| Speeds |
|
