Tractors > CaseIH > 9380

CaseIH 9380 Engine



CaseIH 9380 tractor photo
1996 - 2000
9300 Series
Four-wheel Drive (4WD) tractor
Series map:
9370
9380
9390
360.0hp
400.0hp
425.0hp
Engine Detail
Cummins N14-A400
turbocharged diesel
6-cylinder
liquid-cooled
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power (gross)400 hp
298.3 kW
Compression16.5:1
Rated RPM2100
Idle RPM850-2300
Starter volts12
Oil capacity40.8 qts
38.6 L
Oil change250 h
Coolant capacity66 qts
62.5 L
CaseIH 9380 Engine

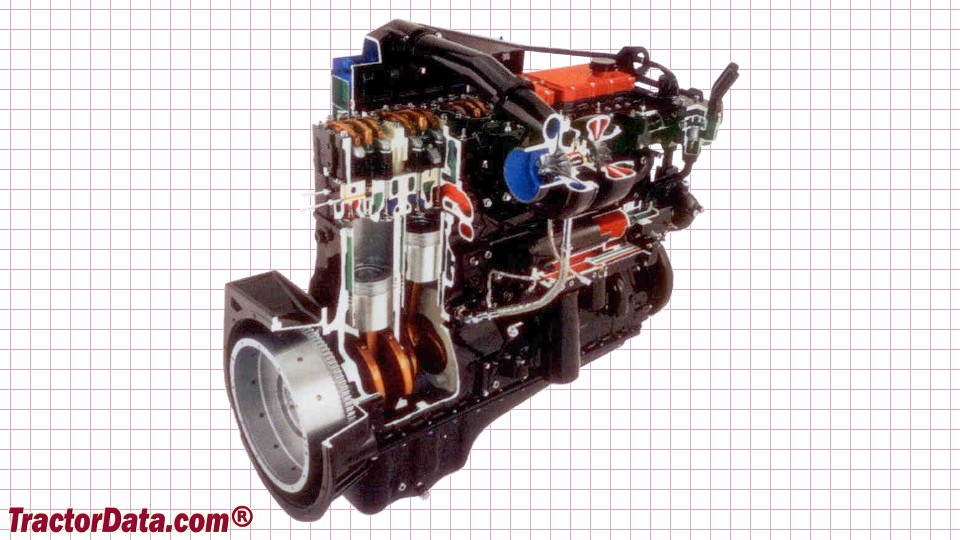

CaseIH 9380 engine image
