CaseIH 9390 Transmission


CaseIH 9390 tractor photo
1997 - 1999
9300 Series
Four-wheel Drive (4WD) tractor
Series map:
9380
9390
400.0hp
425.0hp
Transmission options
12-speed full powershift
12-speed
24-speed
Transmission
Typefull powershift
Gears12 forward and 3 reverse
Clutchwet disc
Speeds
9390  full powershift speeds
Transmission
TransmissionSynchroShift
Gears12 forward and 3 reverse
Clutchwet disc
Three synchronized gears (1-3) in four synchronized ranges (A-D).
Speeds
9390 SynchroShift  speeds
Transmission
TransmissionHi-Lo SynchroShift
Gears24 forward and 6 reverse
Clutchwet disc
Three synchronized gears (1-3) in four synchronized ranges (A-D) with a two-speed high/low shift.
Speeds

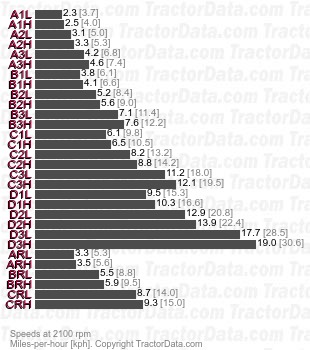

9390 Hi-Lo SynchroShift  speeds
