Ferguson TO-35



Ferguson TO-35 tractor photo
1954 - 1960
Utility tractor
Series map:
TO-35
36.6hp*
*Estimated engine power for comparison only.
Production
ManufacturerFerguson
Utility tractor
Built in Detroit, Michigan, USA
Variants
TO-35 Deluxelive PTO with two-stage clutch
Ferguson TO-35 Engines
Continental 2.2L 4-cyl gasoline
Standard Diesel Company 2.3L 4-cyl diesel
Engine details ...
Ferguson TO-35 Transmission
6-speed unsynchronized gear
Transmission details ...
Ferguson TO-35 Power
Drawbar (tested)30.51 hp
22.8 kW
PTO (tested)32.93 hp
24.6 kW
Belt (tested)33.24 hp
24.8 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Differential mechanical expanding shoe brakes
Open operator station
Photos
Ferguson TO-35 in gray and green (1954-1956).
Ferguson TO-35 photos...
Capacity
Gas Fuel14 gal
53.0 L
Diesel Fuel10 gal
37.9 L
Hydraulic system8 gal
30.3 L
Hydraulics
Capacity8 gal
30.3 L
Pressure2500 psi
172.4 bar
Valves0 to 2
Power Take-off (PTO)
Rear PTOtransmission
 live OptOptional
Rear PTO Type540/ground
Dimensions & Tires
Wheelbase72 inches
182 cm
Weight3200 lbs
1451 kg
Front tire6.00-16
Rear tire11-28
Full dimensions and tires ...
Ferguson TO-35 attachments
front-end loader
Attachment details ...
TO-35 Serial Number Location

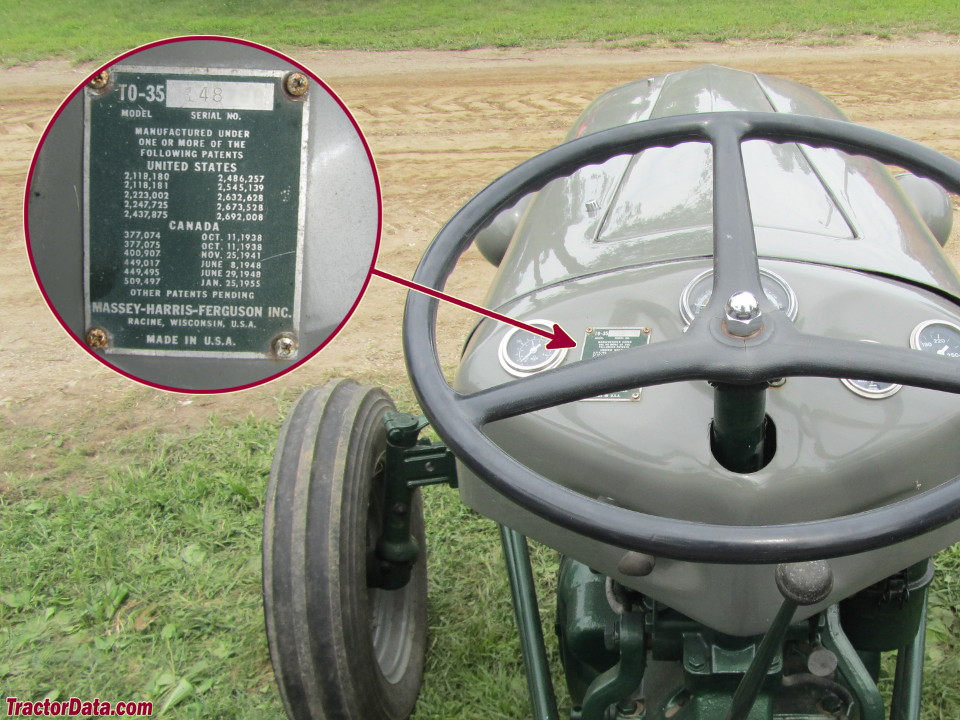

Ferguson TO-35 serial number location
Data plate to left of steering wheel
TO-35 Serial Numbers
1954140001
1955140006
1956167157
1957171741
1958178216 (gas special)
1958183348 (gas deluxe)
Diesel 1958180742
1959188851 (gas special)
1959185504 (gas deluxe)
Diesel 1959187719
1960203680 (gas special)
1960203198 (gas deluxe)
Diesel 1960203360

FAQ: How to read a serial number table.
Electrical
Groundpositive (early)
 negative *Negative ground began with tractor serial number 161250.
Charging systemgenerator
Charging amps12
Gas Batteries1
Diesel Batteries2
Battery volts6
References
TO-35 references literature
35... world's most-copied tractor published in 1958, by Massey Ferguson
