Tractors > Ferguson > TO-35

Ferguson TO-35 Tests



Ferguson TO-35 tractor photo
1954 - 1960
Utility tractor
Series map:
TO-35
36.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 564: gasoline 6-speed 2WD
NTTL 690: diesel 6-speed 2WD
Nebraska Tractor Test 564

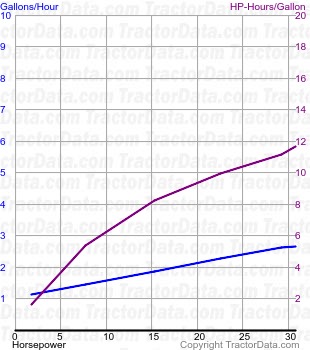

TO-35 fuel use from test 564
Nebraska Tractor Test 564
Gasoline 6-speed 2WD
October 10 - 17, 1955
Link: Nebraska Tractor Test 564 file
Belt power (max)33.24 hp
24.8 kW
Belt fuel use (max)3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power30.51 hp
22.8 kW
Gear 4 used for power test.
Max pull3,400 lbs
1542 kg
Gear 3 used for pull test.
Nebraska Tractor Test 690

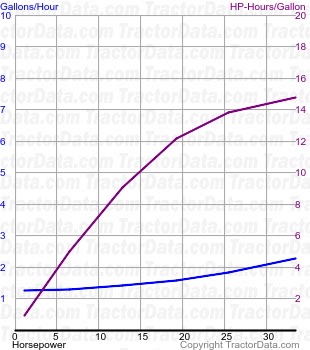

TO-35 fuel use from test 690
Nebraska Tractor Test 690
Diesel 6-speed 2WD
April 31959, - April 13, 1959
Link: Nebraska Tractor Test 690 file
PTO performance
Power at rated engine speed32.93 hp
24.6 kW
Fuel use2.2 gal/hour
8.3 l/hour
Power at rated PTO speed26.50 hp
19.8 kW
Fuel use1.7 gal/hour
6.4 l/hour
Drawbar performance
Max power30.49 hp
22.7 kW
Fuel use2.3 gal/hour
8.7 l/hour
Gear 4 used for power test.
Max pull3,877 lbs
1758 kg
Gear 2 used for pull test.
